LT3741IFETRPBF - Analog Devices

Description: Output Current n ±1.5% Voltage Regulation Accuracy n ±6% Current Regulation Accuracy n 6V to 36V Input Voltage Range n Wide Output Voltage Range Up to (VIN – 2V) n Average Current Mode Control n <1µA Shutdown Current n Up to 94% Efficiency n Additional Pin for Thermal Control of Load Current n Thermally Enhanced 4mm × 4mm QFN and 20-Pin FE Package

Download LT3741IFETRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

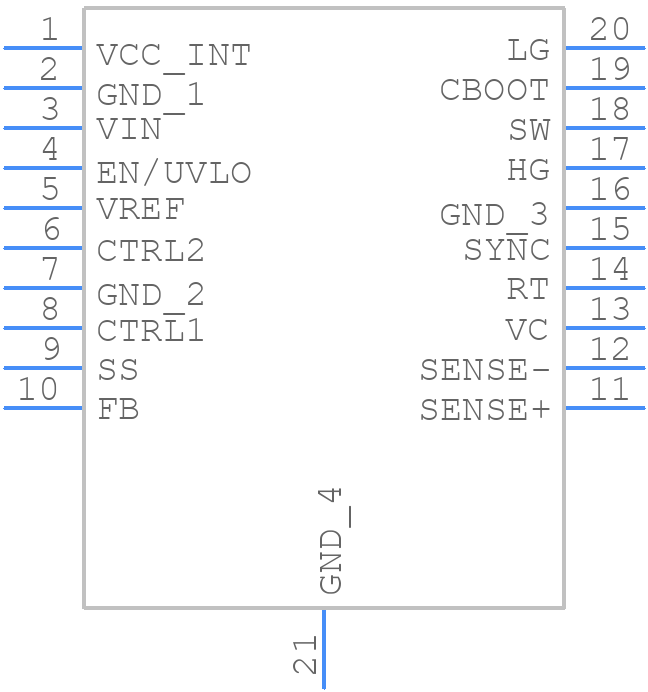

LT3741IFETRPBF - Analog Devices - PCB symbol
