LT3743EFE#PBF - Analog Devices

Description: LED Lighting Drivers Synchronous Step-Down LED Driver with Three State Current Control

Download LT3743EFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

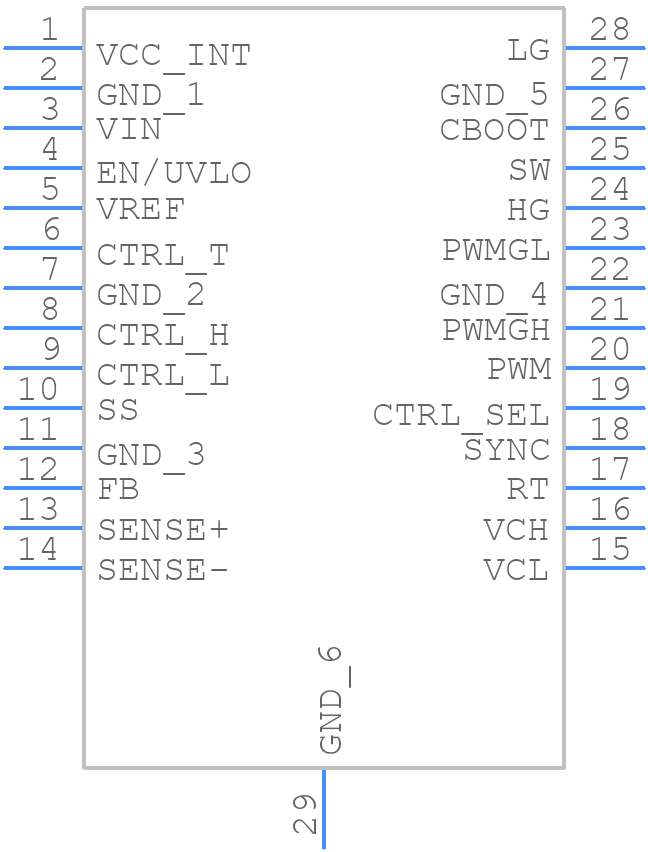

LT3743EFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3743EFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LT3743EFE#PBF
click to zoom
3D Models
LT3743EFE#PBF - Analog Devices - 3D model - Small Outline Packages - LT3743EFE#PBF
click to zoom

LT3743EFE#PBF Details

  • Manufacturer Part Number:

    LT3743EFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663 (EB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

LT3743EFE#PBF Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LT3743EFE#PBF is -40°C to 125°C.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm, and to follow the layout guidelines provided in the datasheet.
  • The recommended input capacitor value for the LT3743EFE#PBF is 10uF to 22uF, with a voltage rating of at least 2x the input voltage.
  • The output voltage of the LT3743EFE#PBF can be adjusted by using a resistive divider network between the output and the FB pin, and by following the equations provided in the datasheet.
  • The maximum input voltage for the LT3743EFE#PBF is 28V.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LT3743EFE#PBF Overview

Use the download button to access the LT3743EFE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT374, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
