LT3744EUHE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT3744EUHE#PBF - LED DRIVER, SYNC BUCK, 40A, QFN-36

Download LT3744EUHE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

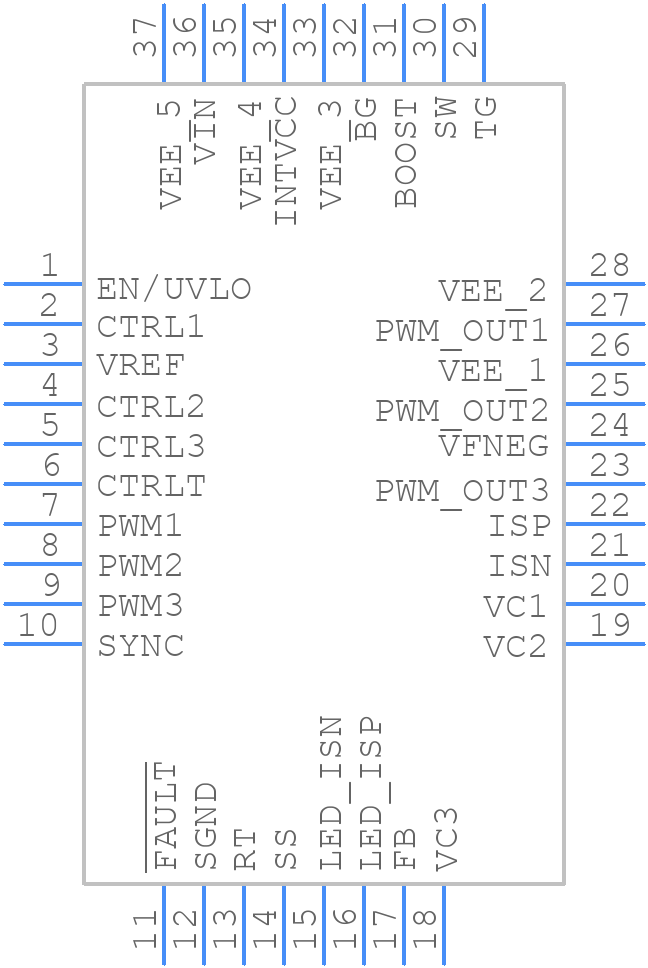

LT3744EUHE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3744EUHE#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LT3744EUHE#PBF
click to zoom
3D Models
LT3744EUHE#PBF - Analog Devices - 3D model - Quad Flat No-Lead - LT3744EUHE#PBF
click to zoom

LT3744EUHE#PBF Details

  • Manufacturer Part Number:

    LT3744EUHE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    05-08-1876

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PQCC-N36

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.2X.24,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LT3744EUHE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3744EUHE#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a low-ESR output capacitor. Also, ensure that the input voltage is within the recommended range, and the output current is within the specified limits.
  • The maximum ambient temperature range for the LT3744EUHE#PBF is -40°C to 125°C. However, the junction temperature should not exceed 150°C to ensure reliable operation.
  • Yes, the LT3744EUHE#PBF is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to automotive and industrial standards. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the required level of reliability.
  • To troubleshoot issues with the LT3744EUHE#PBF, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, and ensure that the PCB layout and component values are correct. Use an oscilloscope to check for any oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for further guidance.
