LT3750EMS#PBF footprint, schematic symbol and 3D model by Analog Devices

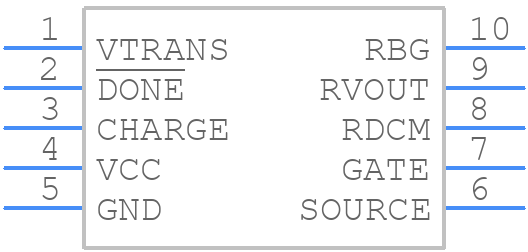

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LT3750EMS#PBF
Part Number LT3750EMS#PBF
Manufacturer Analog Devices
Pin Count 10
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - MS10(MSOP)_4
Released Date Jan 20, 2018
Last Modified Date Nov 14, 2025 4:26 PM UTC
Pinout / Pin List Click Here (Member Only)

LT3750EMS#PBF Details

Manufacturer Part Number:
LT3750EMS#PBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MSOP-10
Pin Count:
10
Manufacturer Package Code:
05-08-1661
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog IC - Other Type:
SWITCHED CAPACITOR CONVERTER
Input Voltage-Max:
24 V
Input Voltage-Min:
3 V
Input Voltage-Nom:
5 V
JESD-30 Code:
S-PDSO-G10
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP10,.19,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
300 kHz
Technology:
BIPOLAR
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

LT3750EMS#PBF Frequently Asked Questions (FAQs)

A good PCB layout for the LT3750EMS#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input voltage is within the recommended range, and the output voltage is set correctly. Additionally, add a small capacitor (e.g., 10nF) between the VFB pin and GND to improve stability.
The maximum ambient temperature range for the LT3750EMS#PBF is -40°C to 125°C. However, the junction temperature (TJ) should not exceed 150°C to ensure reliable operation.
Yes, the LT3750EMS#PBF is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing to ensure its performance and reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the reliability of the final product.
To troubleshoot issues with the LT3750EMS#PBF, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout are correct. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support.

Trust Checks

Expert Contribution

System Verified

Community Approved

LT3750EMS#PBF Overview

Use the download button to access the LT3750EMS#PBF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LT375, or try a keyword search, such as Switching Regulator or Controllers
