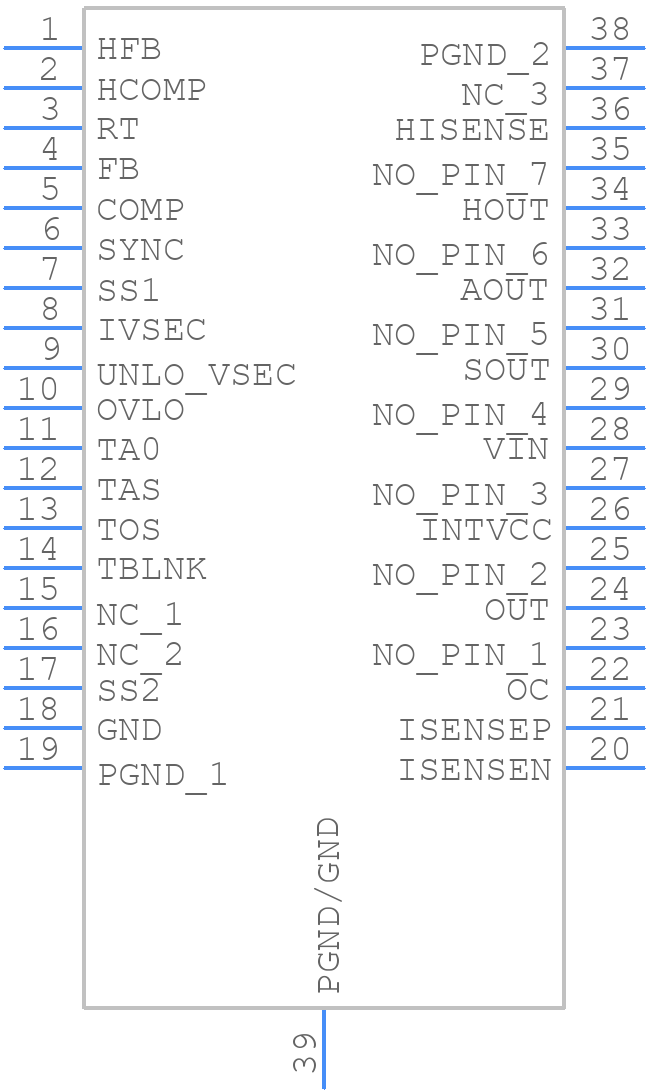

LT3752MPFE#TRPBF - Analog Devices

LT3752MPFE#TRPBF Details

• Manufacturer Part Number:

  LT3752MPFE#TRPBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  TSSOP-38/31

• Pin Count:

  38

• Manufacturer Package Code:

  05-08-1865

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  100 V

• Input Voltage-Min:

  6.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDSO-G31

• JESD-609 Code:

  e3

• Length:

  9.7 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  31

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP31/38,.25,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Seated Height-Max:

  1.2 mm

• Surface Mount:

  YES

• Switcher Configuration:

  PULSE WIDTH MODULATION

• Switching Frequency-Max:

  530 kHz

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm
