LT3755EMSE-2#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT3755EMSE-2#PBF - Led Driver, Boost/Buck, Flyback, SEPIC, PWM Dimming, 4.5V-40V in, 1MHz switch, 75V/1A out, MSOP-16

Download LT3755EMSE-2#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

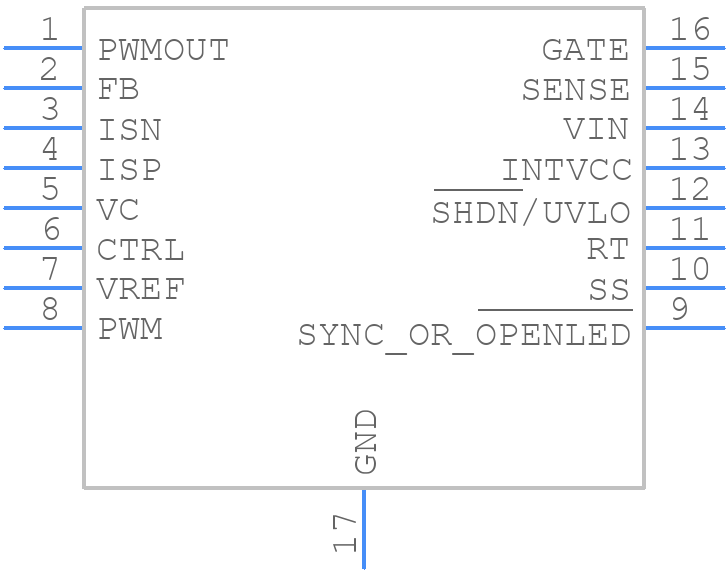

LT3755EMSE-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3755EMSE-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LT3755EMSE-2#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LT3755EMSE-2#PBF Details

  • Manufacturer Part Number:

    LT3755EMSE-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    14

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3755EMSE-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3755EMSE-2#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the output voltage, it is essential to choose the right output capacitor value and type. A minimum output capacitance of 10uF is recommended, and the capacitor should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple.
  • The maximum ambient temperature range for the LT3755EMSE-2#PBF is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the output current may need to be derated.
  • Yes, the LT3755EMSE-2#PBF is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing to ensure its performance and reliability.
  • To troubleshoot issues with the LT3755EMSE-2#PBF, start by checking the input voltage, output voltage, and current. Verify that the input voltage is within the recommended range, and check for any signs of overheating or physical damage. Use an oscilloscope to check for voltage ripple and noise.
