LT3755IMSE-2TRPBF - Analog Devices

Description: n 3000:1 True Color PWM™ Dimming n Wide Input Voltage Range: 4.5V to 40V n Output Voltage Up to 75V n Constant-Current and Constant-Voltage Regulation n 100mV High Side Current Sense n Drives LEDs in Boost, Buck Mode, Buck-Boost Mode, SEPIC or Flyback Topology n Adjustable Frequency: 100kHz to 1MHz n Open LED Protection n Programmable Undervoltage Lockout with Hysteresis n Improved Open LED Status Pin (LT3755-2) n Frequency Synchronization (LT3755-1) n PWM Disconnect Switch Driver n CTRL Pin Pr

Download LT3755IMSE-2TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

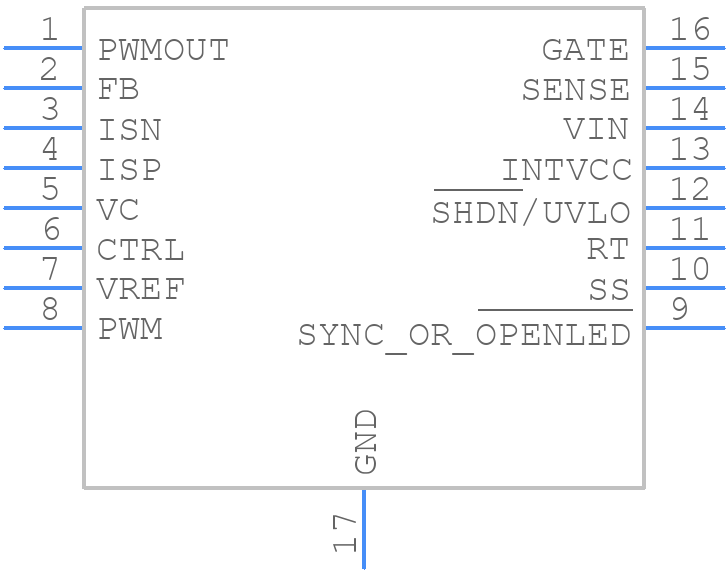

Symbol
LT3755IMSE-2TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3755IMSE-2TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom
3D Models
LT3755IMSE-2TRPBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom

LT3755IMSE-2TRPBF Details

  • Manufacturer Part Number:

    LT3755IMSE-2TRPBF

  • Manufacturer:

    Analog Devices Inc

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LT3755IMSE-2TRPBF Overview

Use the download button to access the LT3755IMSE-2TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT375, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
