LT3756EMSE#TRPBF - Analog Devices

Description: LED Lighting Drivers 100VIN, 100VOUT LED Cntr

Download LT3756EMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

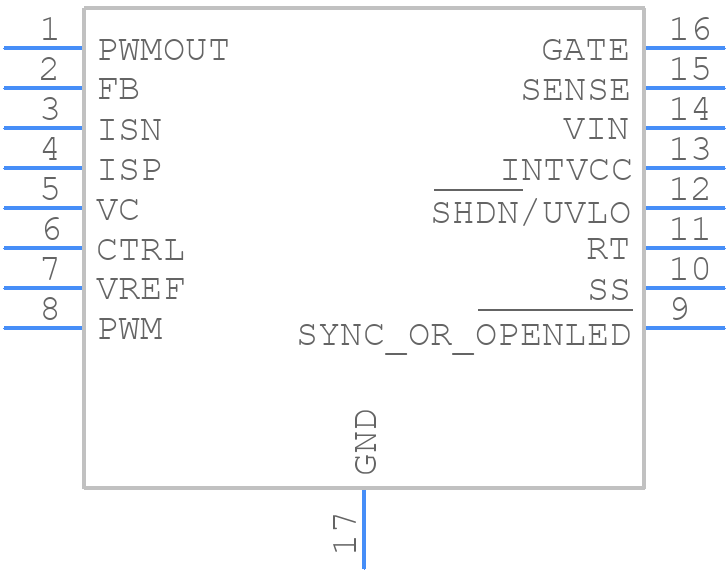

Symbol
LT3756EMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3756EMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16--Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LT3756EMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16--Lead Plastic MSOP, Exposed Die Pad
click to zoom

LT3756EMSE#TRPBF Details

  • Manufacturer Part Number:

    LT3756EMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    18

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    100 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    1.05 MHz

LT3756EMSE#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3756EMSE is 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 40V for optimal performance.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout guidelines, use a suitable output capacitor, and ensure that the input voltage is within the specified range. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage stability can be improved by adding a capacitor in parallel with the output capacitor.
  • The maximum output current that the LT3756EMSE can deliver is 2A, but it's recommended to operate within the specified output current range of 0A to 1.5A for optimal performance and to prevent overheating.
  • To protect the LT3756EMSE from overheating, it's essential to ensure good thermal conductivity between the device and the PCB, use a suitable heat sink, and operate the device within the specified temperature range of -40°C to 125°C. Additionally, the device has a built-in thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C.
  • Yes, the LT3756EMSE is suitable for high-reliability applications due to its high MTBF (Mean Time Between Failures) rating and its compliance with various industry standards, such as AEC-Q100 and MIL-STD-883. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device operates within the specified parameters.
