LT3756IMSE#PBF - Analog Devices

Description: Linear Technology LT3756IMSE#PBF, LCD Display Driver 18-Segments, 6 → 100 V, 16-Pin MSOP

Download LT3756IMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

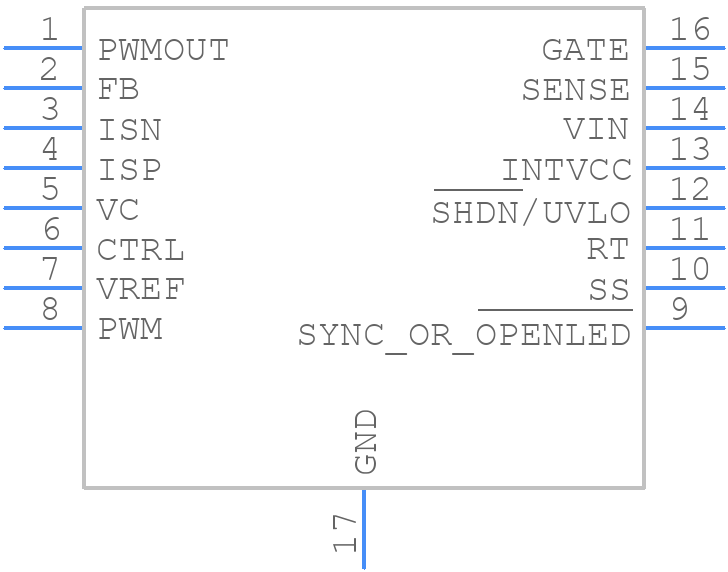

LT3756IMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3756IMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LT3756IMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LT3756IMSE#PBF Details

  • Manufacturer Part Number:

    LT3756IMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    18

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    100 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • fmax-Min:

    1.05 MHz

LT3756IMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3756IMSE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog ground plane for the IC and keep it isolated from the digital ground plane.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to decouple the input and output pins with suitable capacitors, and use a compensation network if necessary. It's also recommended to simulate the design using SPICE models and perform thorough testing to ensure stability over the entire operating range.
  • The LT3756IMSE is rated for operation over a temperature range of -40°C to 125°C. However, the maximum ambient temperature range may be limited by the specific application and the thermal design of the system. It's essential to ensure that the IC does not exceed its maximum junction temperature (150°C) to maintain reliability and performance.
  • The LT3756IMSE is a commercial-grade device, but Analog Devices Inc. offers a variety of high-reliability and aerospace-grade versions of the device, such as the LT3756HMS8E#PBF or the LT3756QMSE#PBF. These devices are designed to meet the specific requirements of high-reliability and aerospace applications, including radiation hardening and extended temperature ranges.
  • To troubleshoot issues with the LT3756IMSE, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the output voltage and current waveforms, and check for any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
