LT3758IMSE#TRPBF - Analog Devices

Description: Switching Voltage Regulators High Input Voltage, Boost, Flyback, SEPIC and Inverting Controller

Download LT3758IMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

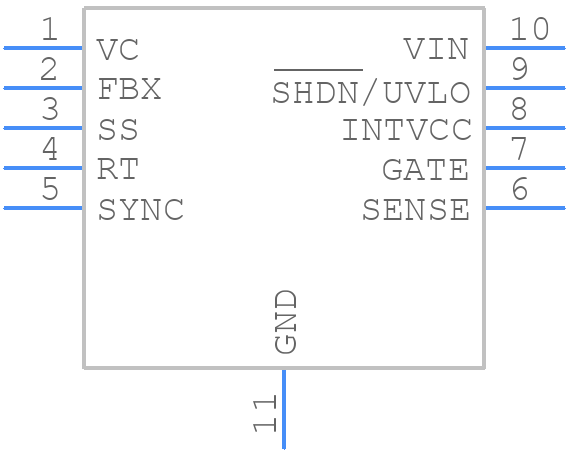

LT3758IMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3758IMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE - 10-Lead Plastic MSOP _1
click to zoom
3D Models
LT3758IMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - MSE - 10-Lead Plastic MSOP _1
click to zoom

LT3758IMSE#TRPBF Details

  • Manufacturer Part Number:

    LT3758IMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    100 V

  • Input Voltage-Min:

    5.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3758IMSE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3758IMSE#TRPBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and separating the high-current and low-current paths. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the LT3758IMSE#TRPBF operates within its SOA, monitor the input voltage, output current, and junction temperature. Ensure the device is properly heatsinked, and the thermal resistance (RθJA) is within the recommended range. Also, follow the recommended layout and thermal design guidelines.
  • When selecting input and output capacitors for the LT3758IMSE#TRPBF, consider the capacitance value, equivalent series resistance (ESR), and voltage rating. Choose capacitors with low ESR and high ripple current ratings to minimize losses and ensure stable operation.
  • To troubleshoot issues with the LT3758IMSE#TRPBF, use an oscilloscope to monitor the input and output voltages, and check for signs of oscillation or instability. Verify the PCB layout and component selection, and ensure the device is properly configured and biased. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
  • Operating the LT3758IMSE#TRPBF at high ambient temperatures can reduce its reliability and lifespan. To mitigate thermal issues, ensure proper heatsinking, use a thermal interface material, and consider using a thermally-enhanced package or a heat sink with a low thermal resistance. Monitor the junction temperature and adjust the design accordingly.
