LT3760EFE#PBF - Analog Devices

Description: Linear Technology LT3760EFE#PBF, LED Display Driver, 6 → 40 V, 28-Pin TSSOP

Download LT3760EFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

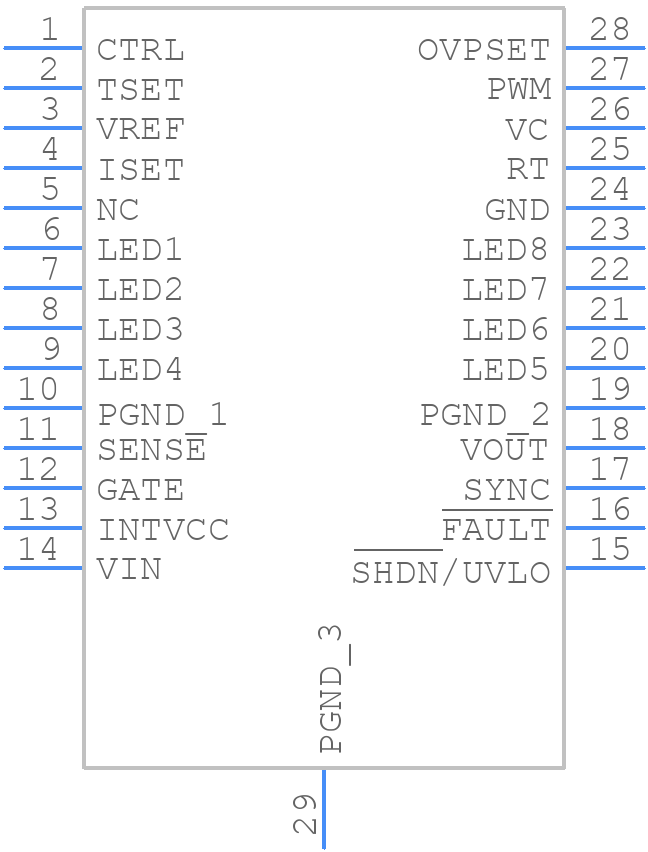

Symbol
LT3760EFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3760EFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package - 28-Lead Plastic TSSOP (4.4mm)_2020
click to zoom
3D Models
LT3760EFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package - 28-Lead Plastic TSSOP (4.4mm)_2020
click to zoom

LT3760EFE#PBF Details

  • Manufacturer Part Number:

    LT3760EFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663 (EB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Data Input Mode:

    SERIAL

  • Display Mode:

    BAR GRAPH

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    8

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    1.1 MHz

LT3760EFE#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the high-current paths.
  • Ensure that the output voltage is within the recommended range, and the input voltage is above the minimum required voltage. Also, use a sufficient output capacitor with a low ESR, and add a small ceramic capacitor in parallel with the output capacitor to improve stability.
  • The maximum ambient temperature range for the LT3760EFE#PBF is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's essential to ensure proper thermal management in your design.
  • Yes, the LT3760EFE#PBF is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to automotive and industrial standards. However, it's essential to follow proper design and manufacturing practices to ensure the reliability of your final product.
  • Start by checking the input voltage, output voltage, and current. Verify that the input voltage is within the recommended range, and the output voltage is within the specified tolerance. Check for any signs of overheating, and ensure that the device is properly soldered and connected. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3760EFE#PBF Overview

Use the download button to access the LT3760EFE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT376, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
