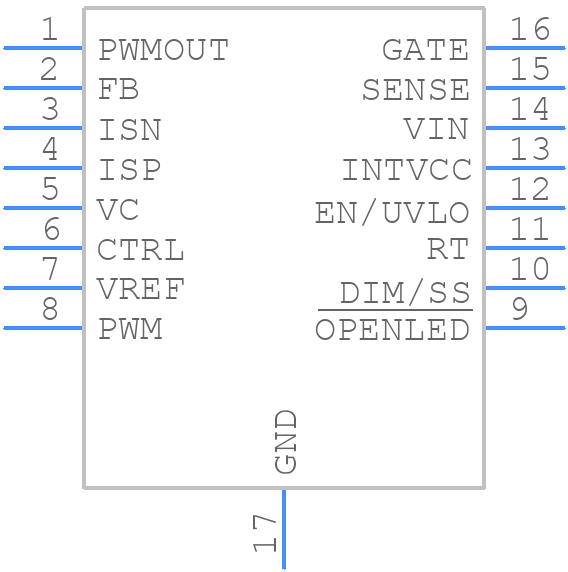

LT3761AEMSE#PBF - Analog Devices

LT3761AEMSE#PBF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the LT3761AEMSE?
  A good PCB layout for the LT3761AEMSE involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
• How do I select the right input and output capacitors for the LT3761AEMSE?
  The selection of input and output capacitors for the LT3761AEMSE depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 1.5 to 2 times the input voltage.
• What is the maximum ambient temperature range for the LT3761AEMSE?
  The maximum ambient temperature range for the LT3761AEMSE is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
• How do I troubleshoot issues with the LT3761AEMSE, such as oscillations or instability?
  To troubleshoot issues with the LT3761AEMSE, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Check for any signs of overheating, and verify that the input and output capacitors are properly selected and connected. Use an oscilloscope to measure the input and output voltages and currents, and look for any signs of oscillations or instability. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines, or contact Analog Devices' technical support for further assistance.
• Can I use the LT3761AEMSE in a high-reliability or automotive application?
  Yes, the LT3761AEMSE is suitable for use in high-reliability and automotive applications. The device is built with high-reliability materials and manufacturing processes, and it meets the requirements of various automotive and industrial standards, such as AEC-Q100 and IEC 60747. However, it's recommended to consult the datasheet and application notes for specific guidance on using the device in these applications, and to verify that the device meets the specific requirements of the application.
