LT3761AIMSE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT3761AIMSE#PBF - LED Driver, Buck-Boost, Flyback, SEPIC, 4.5V to 60V input, 1 MHz Switch. Frequency, MSOP-16

Download LT3761AIMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

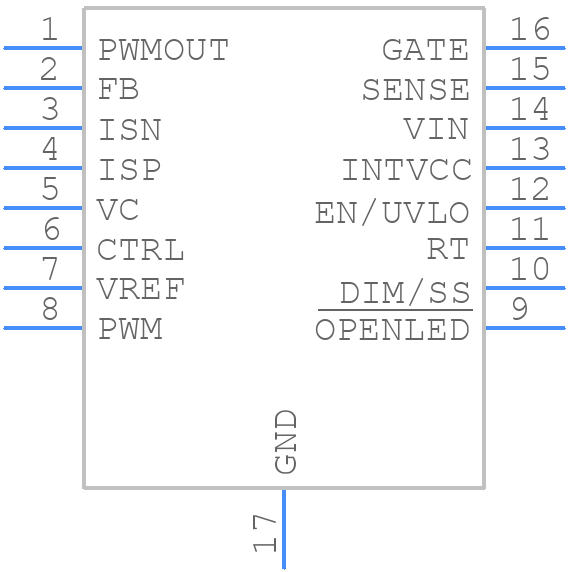

LT3761AIMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3761AIMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom
3D Models
LT3761AIMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1667 Rev F)
click to zoom

LT3761AIMSE#PBF Details

  • Manufacturer Part Number:

    LT3761AIMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3761AIMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3761AIMSE#PBF involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
  • The selection of input and output capacitors for the LT3761AIMSE#PBF depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A good starting point is to use capacitors with a capacitance value of 10uF to 22uF and a voltage rating of 1.5 to 2 times the input voltage.
  • The LT3761AIMSE#PBF can operate at ambient temperatures up to 125°C, but the device's performance and reliability may be affected at high temperatures. It's recommended to derate the device's performance and ensure proper thermal management to prevent overheating.
  • Yes, the LT3761AIMSE#PBF is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's recommended to consult with Analog Devices Inc. for specific requirements and qualifications.
  • Troubleshooting issues with the LT3761AIMSE#PBF involves identifying the root cause of the problem. Common issues include incorrect component selection, poor PCB layout, or inadequate thermal management. It's recommended to consult the datasheet and application notes, and to use simulation tools and oscilloscopes to debug the issue. Additionally, Analog Devices Inc. provides technical support and resources to help troubleshoot and resolve issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3761AIMSE#PBF Overview

Use the download button to access the LT3761AIMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT376, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
