LT3762EUFD#PBF - Analog Devices

Description: 60V Synchronous Boost LED Controller

Download LT3762EUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

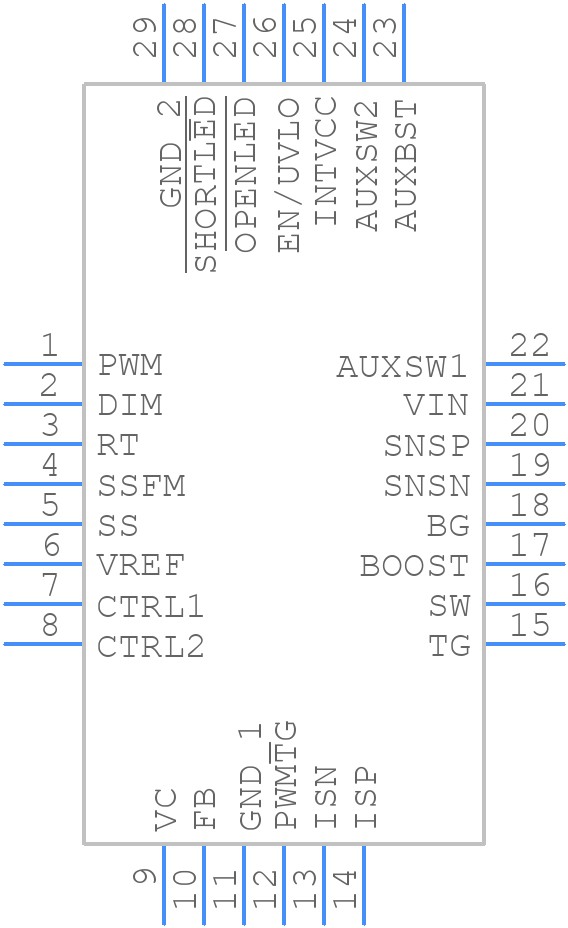

LT3762EUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3762EUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-Lead Plastic QFN (4mm × 5mm)
click to zoom
3D Models
LT3762EUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 28-Lead Plastic QFN (4mm × 5mm)
click to zoom

LT3762EUFD#PBF Details

  • Manufacturer Part Number:

    LT3762EUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-04-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    38.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

LT3762EUFD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3762EUFD involves keeping the high-current paths short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer board with a dedicated power plane and a solid ground plane is recommended. The datasheet provides a recommended layout diagram, but it's essential to consult with experienced PCB designers and perform thermal and signal integrity simulations to ensure optimal performance.
  • The selection of input and output capacitors for the LT3762EUFD depends on the specific application requirements, such as input voltage, output voltage, and output current. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides guidelines for capacitor selection, but it's essential to consult with capacitor manufacturers and perform simulations to ensure that the chosen capacitors meet the application requirements.
  • The maximum ambient temperature for the LT3762EUFD is 85°C, but the device can operate at higher temperatures with derating. The datasheet provides a thermal derating curve, which shows the maximum output current and power dissipation at different ambient temperatures. It's essential to ensure that the device operates within the recommended temperature range to ensure reliability and performance.
  • The LT3762EUFD has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides a recommended circuit diagram and calculation formula for setting the overcurrent threshold. It's essential to carefully design the overcurrent protection circuit to ensure that it triggers at the desired current level and doesn't interfere with normal operation.
  • Yes, the LT3762EUFD is qualified for high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to consult with Analog Devices Inc and perform additional testing and qualification to ensure that the device meets the specific requirements of the application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3762EUFD#PBF Overview

Use the download button to access the LT3762EUFD#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT376, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to LT3762EUFD#PBF

Showing 0 results
