LT3762IFE#PBF - Analog Devices

Description: 60V Synchronous Boost LED Controller

Download LT3762IFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

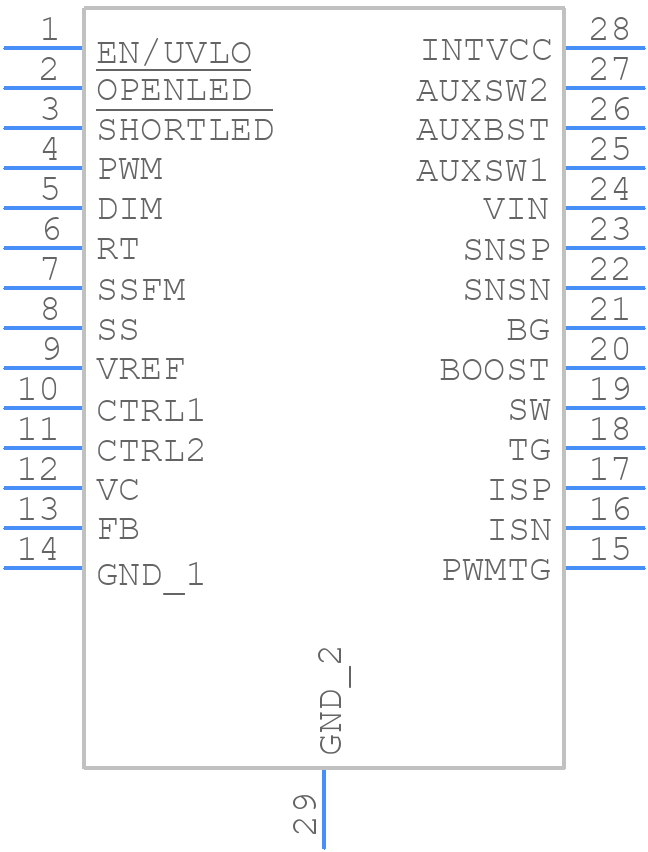

Symbol
LT3762IFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3762IFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package 28-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1663 Rev K) Exposed Pad Variatio
click to zoom
3D Models
LT3762IFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package 28-Lead Plastic TSSOP (4.4mm) (Reference LTC DWG # 05-08-1663 Rev K) Exposed Pad Variatio
click to zoom

LT3762IFE#PBF Details

  • Manufacturer Part Number:

    LT3762IFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-04-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSOP28,.25,26

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    38.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3762IFE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3762IFE#PBF involves keeping the high-frequency switching nodes (e.g., SW, VIN, and VOUT) away from sensitive analog nodes, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • When selecting an inductor for the LT3762IFE#PBF, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 1.5 times the maximum output current, a DC resistance of less than 100 mΩ, and a core material with low core loss (e.g., ferrite or powdered iron).
  • The LT3762IFE#PBF has an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. As a general rule, the ambient temperature should be kept below 85°C to ensure reliable operation.
  • Yes, the LT3762IFE#PBF is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive-grade ICs and is manufactured using a high-reliability process. However, additional testing and validation may be required for specific applications.
  • To troubleshoot common issues with the LT3762IFE#PBF, start by checking the PCB layout, component selection, and soldering quality. Ensure that the input and output capacitors are properly selected and placed, and that the inductor is properly sized and oriented. Use an oscilloscope to measure the switching waveforms and identify any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3762IFE#PBF Overview

Use the download button to access the LT3762IFE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT376, or try a keyword search, such as Display Drivers
