LT3763EFE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT3763EFE#PBF - LED Driver, Buck (Step Down), 6V to 60V input, 1 Output, 1 MHz switch-freq., 20 A out, TSSOP-28

Download LT3763EFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

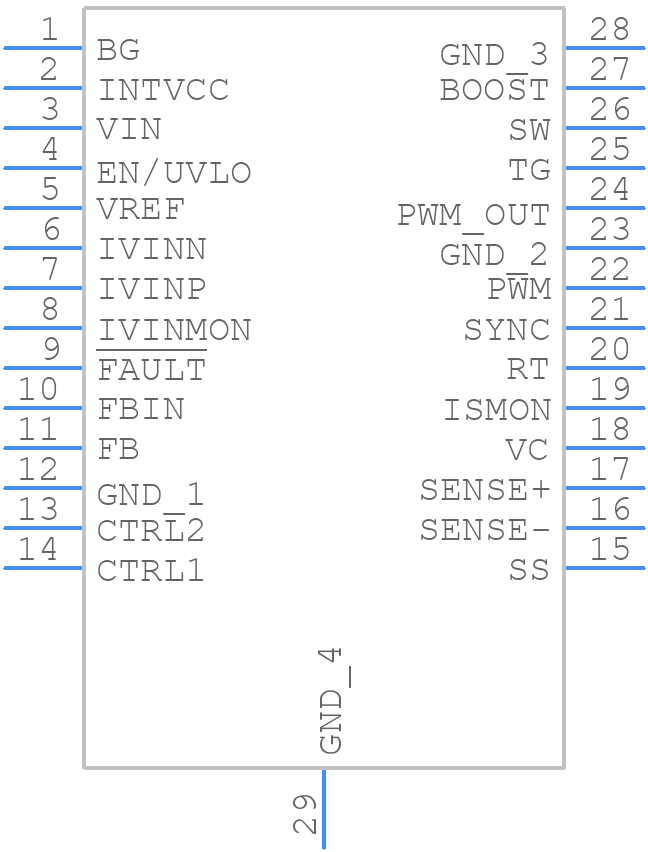

LT3763EFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3763EFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LT3763EFE#PBF - Analog Devices - 3D model - Small Outline Packages - 28-Lead Plastic TSSOP (4.4mm)
click to zoom

LT3763EFE#PBF Details

  • Manufacturer Part Number:

    LT3763EFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663 (EB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3763EFE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3763EFE#PBF involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input voltage is within the recommended range, and the output voltage is set correctly. Additionally, add a small capacitor (e.g., 10nF) between the VCC pin and GND to filter out noise.
  • The maximum ambient temperature range for the LT3763EFE#PBF is -40°C to 125°C. However, the device's performance may degrade at higher temperatures, so it's essential to ensure proper thermal management in your design.
  • Yes, the LT3763EFE#PBF is suitable for high-reliability applications. It's manufactured using a high-reliability process, and it's qualified to automotive and industrial standards. However, it's essential to follow proper design and manufacturing guidelines to ensure the device's reliability in your specific application.
  • To troubleshoot issues with the LT3763EFE#PBF, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for noise, oscillations, or other anomalies. If the issue persists, consult the datasheet and application notes or contact Analog Devices' support team for assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3763EFE#PBF Overview

Use the download button to access the LT3763EFE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT376, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
