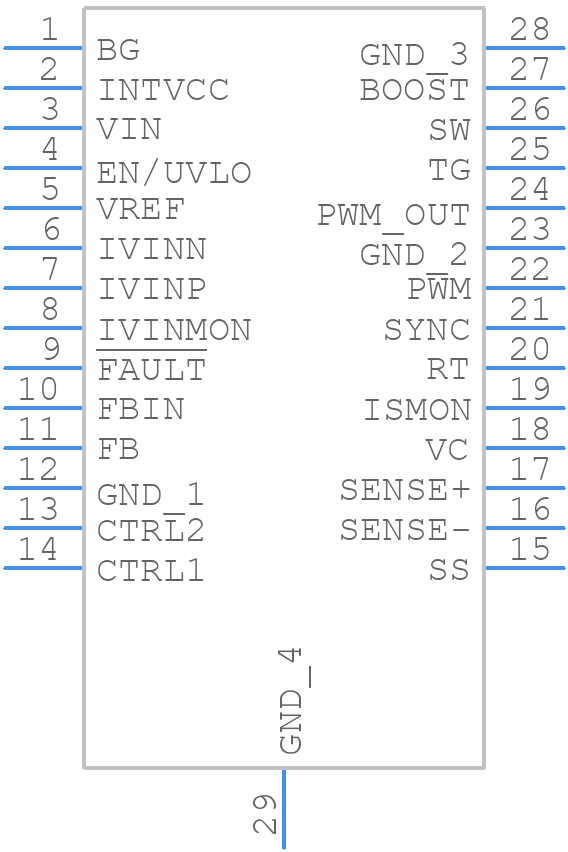

LT3763HFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3763HFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package - 28-Lead Plastic TSSOP (4.4mm)_2020
click to zoom
3D Models
LT3763HFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package - 28-Lead Plastic TSSOP (4.4mm)_2020
click to zoom

LT3763HFE#PBF Details

  • Manufacturer Part Number:

    LT3763HFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663 (EB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3763HFE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3763HFE is 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 40V for optimal performance.
  • To ensure stability, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the feedback network should be properly designed to ensure stability.
  • The maximum output current that the LT3763HFE can deliver is 3.5A, but this can be limited by the input voltage, output voltage, and thermal considerations. It's essential to check the datasheet for the recommended operating conditions.
  • The output voltage of the LT3763HFE can be programmed using the FB pin and an external resistor divider network. The output voltage is determined by the ratio of the resistors and the internal reference voltage.
  • The EN (enable) pin is used to enable or disable the regulator. When the EN pin is pulled low, the regulator is disabled, and the output voltage is turned off. This pin can be used to implement power sequencing or to turn off the regulator during shutdown.
