LT3763IFE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT3763IFE#PBF - LED Driver, Buck (Step Down), 6V to 60V input, 1 Output, 1 MHz switch-freq., 20 A out, TSSOP-28

Download LT3763IFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

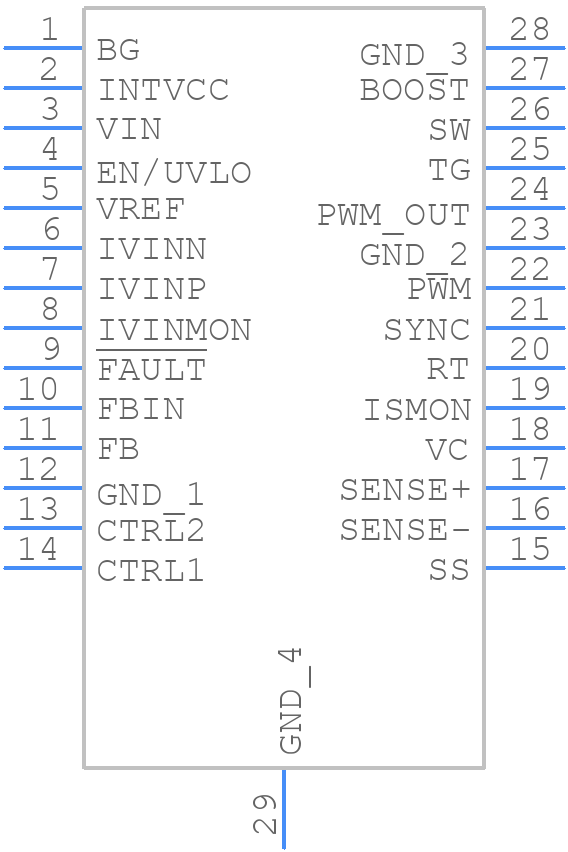

Symbol
LT3763IFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3763IFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package - 28-Lead Plastic TSSOP (4.4mm)_2020
click to zoom
3D Models
LT3763IFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package - 28-Lead Plastic TSSOP (4.4mm)_2020
click to zoom

LT3763IFE#PBF Details

  • Manufacturer Part Number:

    LT3763IFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1663 (EB)

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3763IFE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3763IFE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • When selecting an inductor for the LT3763IFE, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 1.5 times the maximum output current, and a DC resistance of less than 100 mΩ.
  • The LT3763IFE is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. In general, the device can operate up to 85°C ambient temperature with proper heat sinking and airflow.
  • The LT3763IFE has a built-in overcurrent protection feature that can be enabled by connecting a resistor from the ISET pin to GND. The resistor value determines the overcurrent threshold. A good starting point is to choose a resistor value that sets the overcurrent threshold to 1.5 times the maximum output current.
  • A good input capacitor for the LT3763IFE is a low-ESR ceramic capacitor with a value of at least 10 μF. X5R or X7R dielectric capacitors are recommended due to their low ESR and high ripple current capability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3763IFE#PBF Overview

Use the download button to access the LT3763IFE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT376, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
