LT3791IFE-1#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT3791IFE-1#PBF - PWM Controller Buck-Boost, 700 kHz, 10A out, TSSOP-38

Download LT3791IFE-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

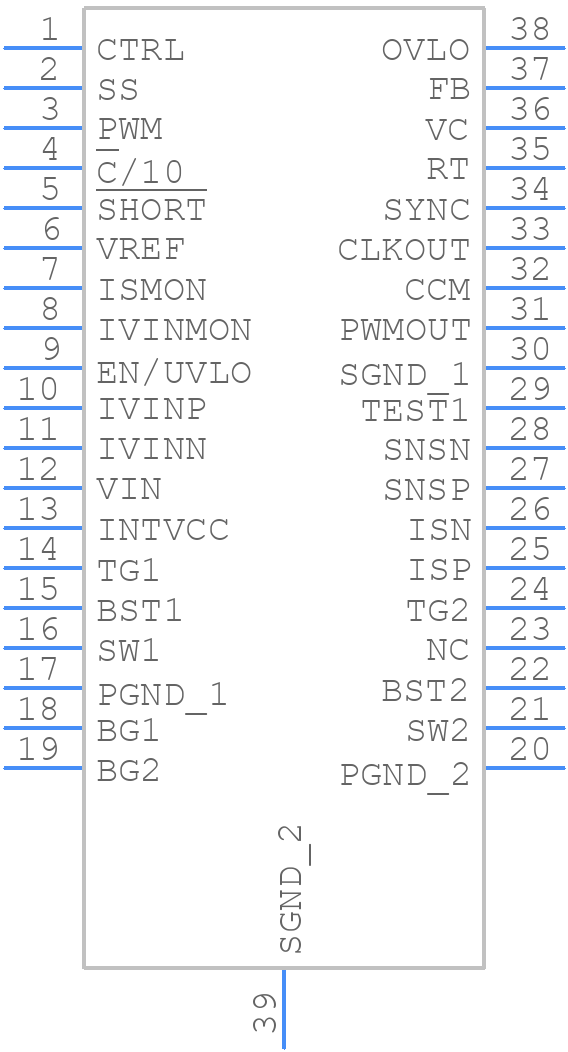

Symbol
LT3791IFE-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3791IFE-1#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE Package Package Variation: FE38 (31) 38-Lead Plastic TSSOP (4.4mm)
click to zoom
3D Models
LT3791IFE-1#PBF - Analog Devices - 3D model - Small Outline Packages - FE Package Package Variation: FE38 (31) 38-Lead Plastic TSSOP (4.4mm)
click to zoom

LT3791IFE-1#PBF Details

  • Manufacturer Part Number:

    LT3791IFE-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4.40 MM, LEAD FREE, PLASTIC, TSSOP-38

  • Pin Count:

    38

  • Manufacturer Package Code:

    05-08-1772

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    60 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    735 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LT3791IFE-1#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3791IFE-1#PBF is 100V, but it's recommended to operate within the specified input voltage range of 4.5V to 60V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to follow the recommended layout guidelines, use a suitable output capacitor with low ESR, and add a minimum of 10uF ceramic capacitor at the input pin. Additionally, ensure that the feedback network is properly compensated and the output voltage is within the specified range.
  • The maximum output current that the LT3791IFE-1#PBF can deliver is 1.2A, but it's recommended to operate within the specified output current range of 0A to 1A for optimal performance and reliability.
  • To optimize the efficiency of the LT3791IFE-1#PBF, ensure that the input voltage is within the specified range, use a suitable inductor with low DCR, and optimize the switching frequency. Additionally, minimize the voltage drop across the output diode and use a low-loss output capacitor.
  • The recommended PCB layout for the LT3791IFE-1#PBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces. Additionally, ensure that the high-current paths are wide and short, and the sensitive analog signals are kept away from the high-current paths.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3791IFE-1#PBF Overview

Use the download button to access the LT3791IFE-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT379, or try a keyword search, such as Switching Regulator or Controllers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
