LT3798IMSE#PBF - Analog Devices

Description: Isolated No Opto-Coupler Flyback Controller with Active PFC

Download LT3798IMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

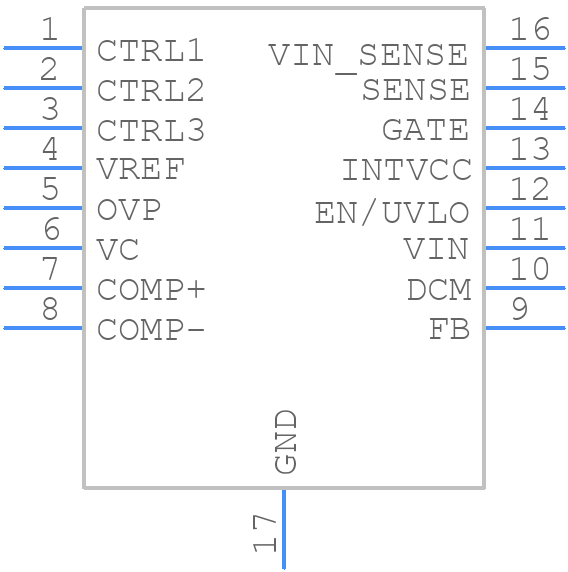

LT3798IMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3798IMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16--Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LT3798IMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16--Lead Plastic MSOP, Exposed Die Pad
click to zoom

LT3798IMSE#PBF Details

  • Manufacturer Part Number:

    LT3798IMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO OPERATES AS LDO REGULATOR

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    150 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3798IMSE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LT3798 can handle is 100V, but it's recommended to operate it within the specified input voltage range of 4.5V to 60V for optimal performance and reliability.
  • To minimize EMI, it's essential to follow good PCB layout practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. Additionally, using a shielded inductor and placing the IC away from noise-sensitive components can help reduce EMI.
  • The recommended operating frequency range for the LT3798 is 100kHz to 500kHz. Operating the IC outside of this range may affect its performance and efficiency.
  • To select the right inductor for the LT3798, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 1.5 times the maximum output current, and a DC resistance that is as low as possible. The core material should be suitable for the operating frequency range.
  • The maximum output current that the LT3798 can deliver depends on the input voltage and the output voltage. The IC can deliver up to 10A of output current with an input voltage of 12V and an output voltage of 5V. However, the actual output current capability may be limited by the thermal performance of the IC and the PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3798IMSE#PBF Overview

Use the download button to access the LT3798IMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT379, or try a keyword search, such as Switching Regulator or Controllers
