LT3799IMSE#TRPBF - Analog Devices

Description: Offline Isolated Flyback LED Controller with Active PFC

Download LT3799IMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

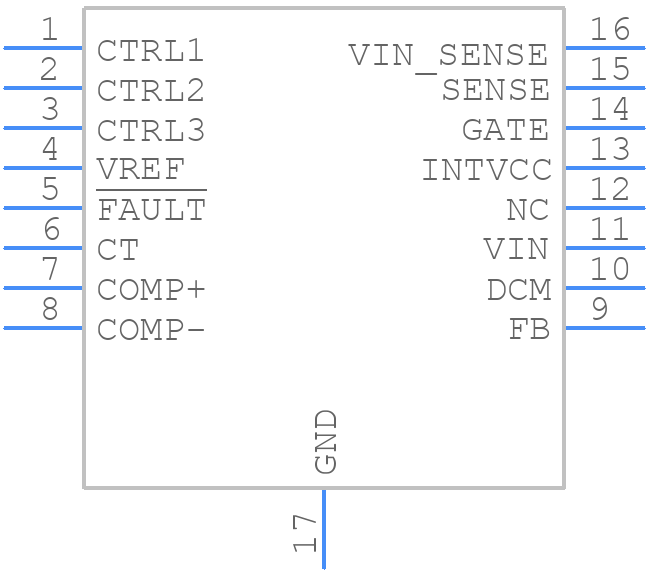

LT3799IMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3799IMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LT3799IMSE#TRPBF
click to zoom
3D Models
LT3799IMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - LT3799IMSE#TRPBF
click to zoom

LT3799IMSE#TRPBF Details

  • Manufacturer Part Number:

    LT3799IMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    6

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    18 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3799IMSE#TRPBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LT3799IMSE is 100V, but it's recommended to keep it below 90V for reliable operation.
  • To ensure the LT3799IMSE operates within its SOA, monitor the input voltage, output current, and junction temperature. Make sure they are within the recommended limits specified in the datasheet.
  • A good PCB layout for the LT3799IMSE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. Also, ensure good thermal conduction by using a thermal pad and vias under the IC.
  • The LT3799IMSE is rated for operation up to 125°C junction temperature. However, it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation.
  • To troubleshoot issues with the LT3799IMSE, check the PCB layout, component values, and input/output connections. Ensure that the input voltage is within the recommended range and the output is properly filtered. Use an oscilloscope to monitor the output voltage and current waveforms.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3799IMSE#TRPBF Overview

Use the download button to access the LT3799IMSE#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT379, or try a keyword search, such as Display Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
