LT3922IUFD#PBF - Analog Devices

Description: 36V, 2A Synchronous Step-Up LED Driver

Download LT3922IUFD#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

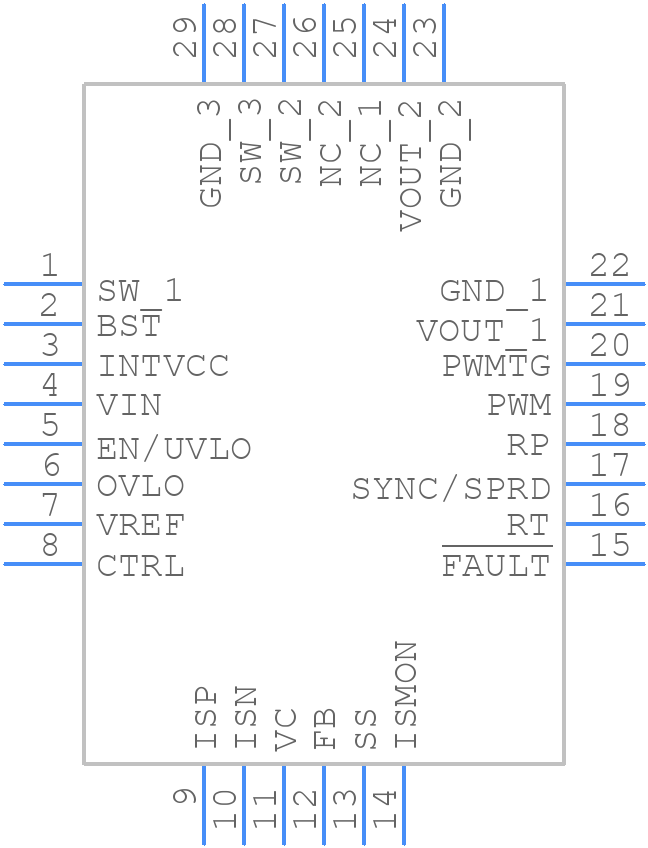

Symbol
LT3922IUFD#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3922IUFD#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28 pin qfn
click to zoom
3D Models
LT3922IUFD#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 28 pin qfn
click to zoom

LT3922IUFD#PBF Details

  • Manufacturer Part Number:

    LT3922IUFD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    05-08-1712

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    2.8 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • fmax-Min:

    1.88 MHz

LT3922IUFD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3922IUFD involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF input capacitance is recommended.
  • The maximum ambient temperature range for the LT3922IUFD is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C.
  • Yes, the LT3922IUFD is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure high reliability. However, it is recommended to follow the recommended operating conditions and to perform thorough testing and validation for the specific application.
  • To troubleshoot issues with the LT3922IUFD, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are of high quality and have low ESR. Check for any signs of overheating, and ensure that the device is operated within the recommended operating conditions.
