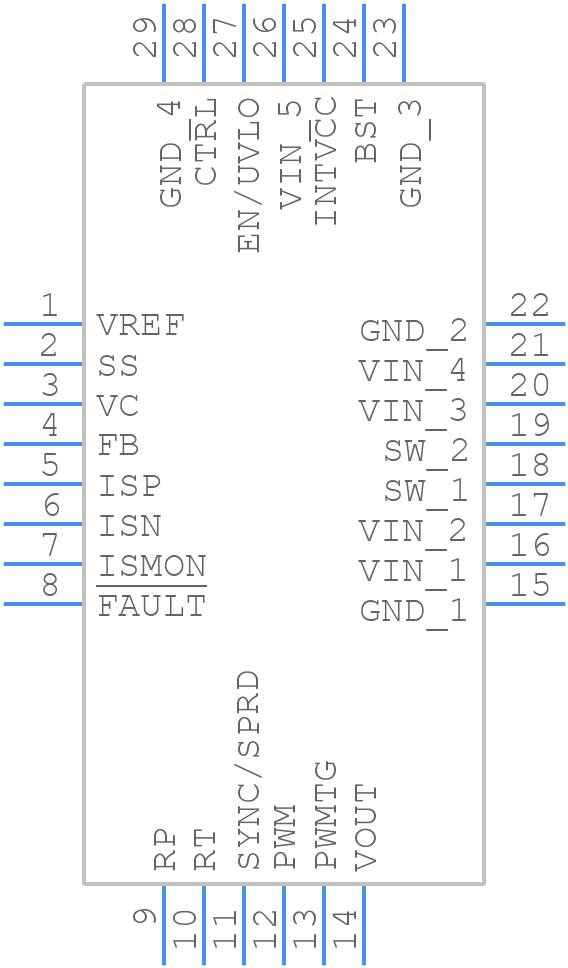

LT3932EUFD#PBF - Analog Devices

LT3932EUFD#PBF Details

• Manufacturer Part Number:

  LT3932EUFD#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  QFN-28

• Pin Count:

  28

• Manufacturer Package Code:

  05-08-1712

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Data Input Mode:

  SERIAL

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  R-PQCC-N28

• JESD-609 Code:

  e3

• Length:

  5 mm

• Moisture Sensitivity Level:

  1

• Multiplexed Display Capability:

  NO

• Number of Functions:

  1

• Number of Segments:

  3

• Number of Terminals:

  28

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  CONSTANT-CURRENT

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC28,.16X.2,20

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  0.8 mm

• Supply Voltage-Max:

  36 V

• Supply Voltage-Min:

  3.6 V

• Supply Voltage-Nom:

  12 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4 mm

• fmax-Min:

  1 MHz
