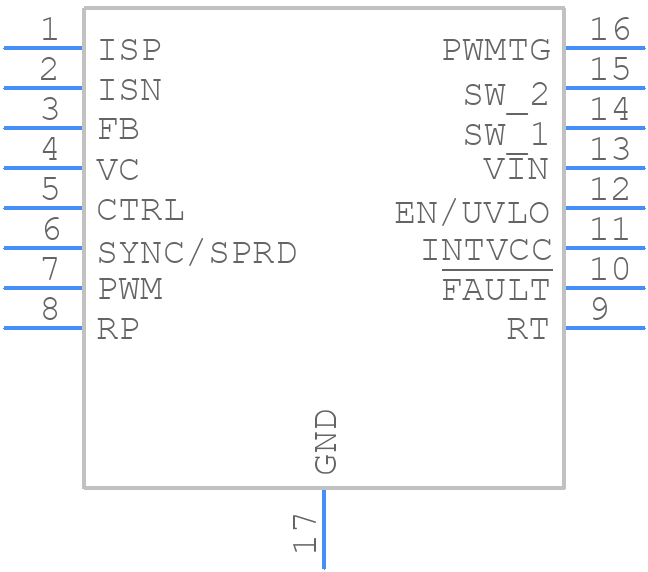

LT3950EMSE#PBF - Analog Devices

LT3950EMSE#PBF Details

• Manufacturer Part Number:

  LT3950EMSE#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  MSOP-16

• Pin Count:

  16

• Manufacturer Package Code:

  05-08-1667

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• Data Input Mode:

  SERIAL

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  R-PDSO-G16

• Length:

  4.039 mm

• Moisture Sensitivity Level:

  1

• Multiplexed Display Capability:

  NO

• Number of Functions:

  1

• Number of Segments:

  4

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  CONSTANT-CURRENT

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP16,.19,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  0.2 mA

• Supply Voltage-Max:

  60 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  12 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Width:

  3 mm
