LT3960EMSE#TRPBF - Analog Devices

Description: n Protected from Overvoltage Line Faults to ±40V n Up to 400kbps I2C Communications n 4V to 60V Power Supply Range with Internal 3.3V Regulator n 3.3V or 5V Bus Voltage n Extended Common Mode Range (±36V) n Current Limited Drivers with Thermal Shutdown n Power-Up/Down Glitch Free Driver Outputs n Low Current Shutdown Mode n Transmit Data Dominant Timeout Function n E- and J-Grades Available n Available in a 10-Lead MSOP Package n AEC-Q100 Qualified for Automotive Applications

Download LT3960EMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

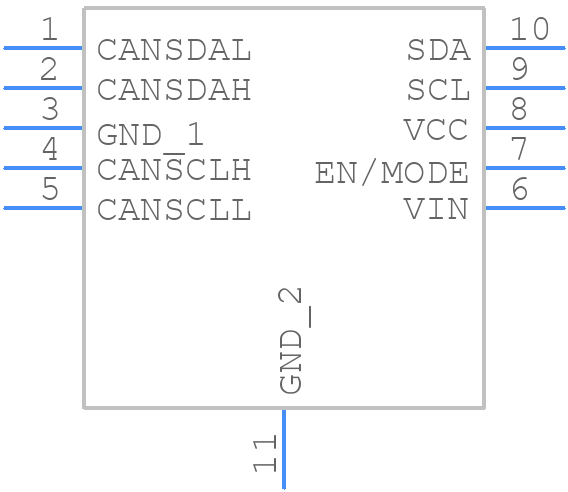

Symbol
LT3960EMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3960EMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead (3mm × 3mm) Plastic MSOP
click to zoom
3D Models
LT3960EMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - 10-Lead (3mm × 3mm) Plastic MSOP
click to zoom

LT3960EMSE#TRPBF Details

  • Manufacturer Part Number:

    LT3960EMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-10-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Rate:

    400 Mbps

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.2,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3960EMSE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the LT3960EMSE#TRPBF near a thermal pad or a heat sink, and ensuring that there are no thermal barriers between the device and the ambient air. Additionally, using a 2-layer or 4-layer PCB with a solid ground plane can help to dissipate heat more efficiently.
  • To ensure reliable start-up of the LT3960EMSE#TRPBF, it is recommended to use a soft-start circuit to limit the inrush current during power-up. This can be achieved by adding a resistor and capacitor in series between the VIN pin and the input voltage source.
  • The maximum allowed voltage on the EN pin of the LT3960EMSE#TRPBF is 6V. Exceeding this voltage may damage the device. It is recommended to use a voltage divider or a level shifter to ensure that the voltage on the EN pin does not exceed 6V.
  • The output voltage of the LT3960EMSE#TRPBF can be adjusted by using a resistive divider network between the VOUT pin and the GND pin. The output voltage can be calculated using the formula: VOUT = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
  • The recommended input capacitor value for the LT3960EMSE#TRPBF is 10uF to 22uF, with a voltage rating of at least 10V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3960EMSE#TRPBF Overview

Use the download button to access the LT3960EMSE#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT396, or try a keyword search, such as Network Interfaces
