LT3960JMSE#TRPBF - Analog Devices

Description: n Protected from Overvoltage Line Faults to ±40V n Up to 400kbps I2C Communications n 4V to 60V Power Supply Range with Internal 3.3V Regulator n 3.3V or 5V Bus Voltage n Extended Common Mode Range (±36V) n Current Limited Drivers with Thermal Shutdown n Power-Up/Down Glitch Free Driver Outputs n Low Current Shutdown Mode n Transmit Data Dominant Timeout Function n E- and J-Grades Available n Available in a 10-Lead MSOP Package n AEC-Q100 Qualified for Automotive Applications

Download LT3960JMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

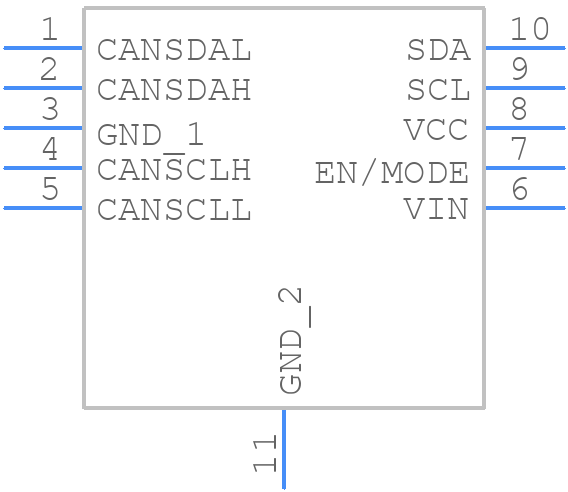

LT3960JMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3960JMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead (3mm × 3mm) Plastic MSOP
click to zoom
3D Models
LT3960JMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - 10-Lead (3mm × 3mm) Plastic MSOP
click to zoom

LT3960JMSE#TRPBF Details

  • Manufacturer Part Number:

    LT3960JMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-10-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Rate:

    400 Mbps

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.2,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3960JMSE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3960JMSE involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, avoid using long traces and minimize the inductance in the circuit.
  • The maximum ambient temperature range for the LT3960JMSE is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C.
  • Yes, the LT3960JMSE is suitable for high-reliability applications. It is manufactured using a high-reliability process and is screened to ensure that it meets the required standards. However, it is essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
  • To troubleshoot issues with the LT3960JMSE, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout are correct. Use an oscilloscope to check for oscillations or other anomalies. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3960JMSE#TRPBF Overview

Use the download button to access the LT3960JMSE#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT396, or try a keyword search, such as Network Interfaces
