LT3960JMSE#WPBF - Analog Devices

Description: I2C to CAN-Physical Transceiver

Download LT3960JMSE#WPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

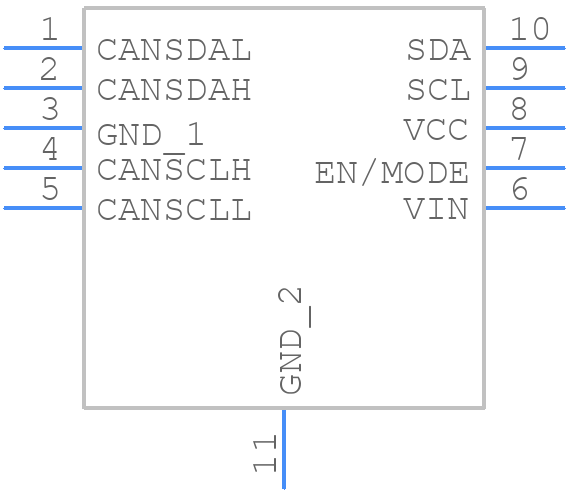

LT3960JMSE#WPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3960JMSE#WPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead (3mm × 3mm) Plastic MSOP
click to zoom
3D Models
LT3960JMSE#WPBF - Analog Devices - 3D model - Small Outline Packages - 10-Lead (3mm × 3mm) Plastic MSOP
click to zoom

LT3960JMSE#WPBF Details

  • Manufacturer Part Number:

    LT3960JMSE#WPBF

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    EXPOSED PAD MINI_SOIC

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    EXPOSED PAD MINI_SOIC

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-10-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Data Rate:

    400 Mbps

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.2,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LT3960JMSE#WPBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LT3960JMSE can be found in the LT3960 demo circuit DC1940A, which is available on the Analog Devices website. It provides a detailed layout guide, including component placement, routing, and thermal management considerations.
  • The compensation network for the LT3960JMSE can be optimized using the LTpowerCAD software tool, which provides a graphical interface for designing and simulating the compensation network. The tool takes into account the specific application requirements, such as output voltage, current, and frequency, to provide an optimized compensation network design.
  • The maximum junction temperature for the LT3960JMSE is 150°C. However, it is recommended to keep the junction temperature below 125°C for reliable operation and to ensure a long lifespan for the device.
  • Yes, the LT3960JMSE is qualified for use in high-reliability and automotive applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices and is also suitable for use in other high-reliability applications, such as aerospace and industrial control systems.
  • Troubleshooting issues with the LT3960JMSE can be done using a combination of measurement tools, such as an oscilloscope and a frequency analyzer, and simulation tools, such as LTspice. The Analog Devices website also provides a range of application notes and technical articles that provide guidance on troubleshooting common issues with the LT3960JMSE.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT3960JMSE#WPBF Overview

Use the download button to access the LT3960JMSE#WPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT396, or try a keyword search, such as Network Interfaces

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
