LT3990HMSE#PBF - Analog Devices

Description: 62V, 350mA Step-Down Regulator with 2.5??A Quiescent Current and Integrated Diodes

Download LT3990HMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

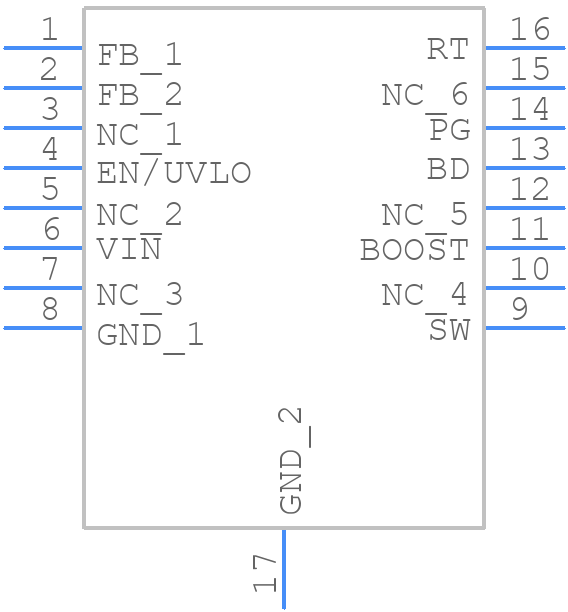

LT3990HMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3990HMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LT3990HMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 16-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LT3990HMSE#PBF Details

  • Manufacturer Part Number:

    LT3990HMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    62 V

  • Input Voltage-Min:

    4.2 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.865 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2760 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3990HMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT3990 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR (Equivalent Series Resistance) and is properly decoupled from the input capacitor. A minimum output capacitance of 10uF is recommended.
  • The LT3990 can handle input voltages up to 60V, but it's recommended to operate within the specified input voltage range of 7V to 40V for optimal performance and reliability.
  • The LT3990 is rated for operation up to 150°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider thermal management techniques such as heat sinking and airflow to ensure reliable operation.
  • To protect the LT3990 from input voltage surges and transients, consider adding a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. Additionally, ensure that the input capacitor is rated for the maximum expected input voltage surge.
