LT3995HMSE#PBF - Analog Devices

Description: 60V, 3A, 2MHz Step-Down Switching Regulator with 2.7μA Quiescent Current

Download LT3995HMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

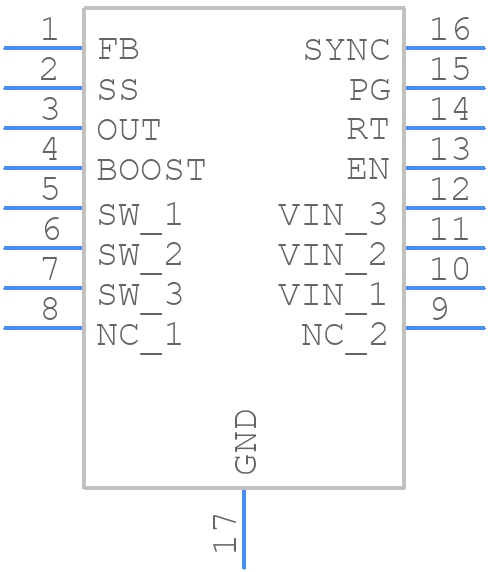

Symbol
LT3995HMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT3995HMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - EXPOSED PAD MINI_SOIC_2023-1
click to zoom
3D Models
LT3995HMSE#PBF - Analog Devices - 3D model - Small Outline Packages - EXPOSED PAD MINI_SOIC_2023-1
click to zoom

LT3995HMSE#PBF Details

  • Manufacturer Part Number:

    LT3995HMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1667

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.3 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    7.9 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2700 kHz

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT3995HMSE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that the LT3995 can handle is 60V, but it's recommended to operate it within the specified input voltage range of 4.5V to 40V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be adjusted using the feedback resistors, and the output voltage stability can be improved by adding a capacitor in parallel with the feedback resistors.
  • The maximum output current that the LT3995 can deliver is 2A, but it's recommended to operate it within the specified output current range of 0A to 1.5A for optimal performance and reliability.
  • The LT3995 has built-in overcurrent protection and thermal shutdown features to protect it from damage. However, it's still essential to follow proper design and layout guidelines to prevent overheating and overcurrent conditions. Additionally, the use of external protection components, such as fuses or current-limiting resistors, can provide an extra layer of protection.
  • The LT3995 is rated for operation up to 125°C, but it's essential to follow proper thermal design and layout guidelines to ensure reliable operation in high-temperature environments. Additionally, the use of thermal interface materials and heat sinks can help to improve heat dissipation and reduce the risk of overheating.
