LT4275AHMS#PBF - Analog Devices

Description: Power Over Ethernet Controller 1 Channel 802.3at (PoE+), 802.3af (PoE), LTPoE++ 10-MSOP

Download LT4275AHMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

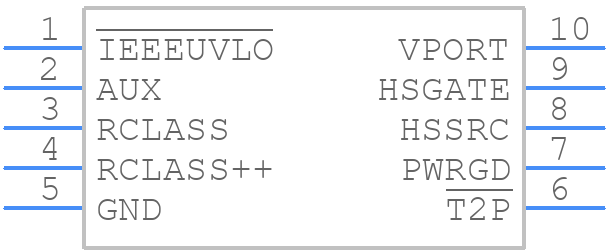

LT4275AHMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4275AHMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS 10 MSOP-1
click to zoom
3D Models
LT4275AHMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS 10 MSOP-1
click to zoom

LT4275AHMS#PBF Details

  • Manufacturer Part Number:

    LT4275AHMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30
