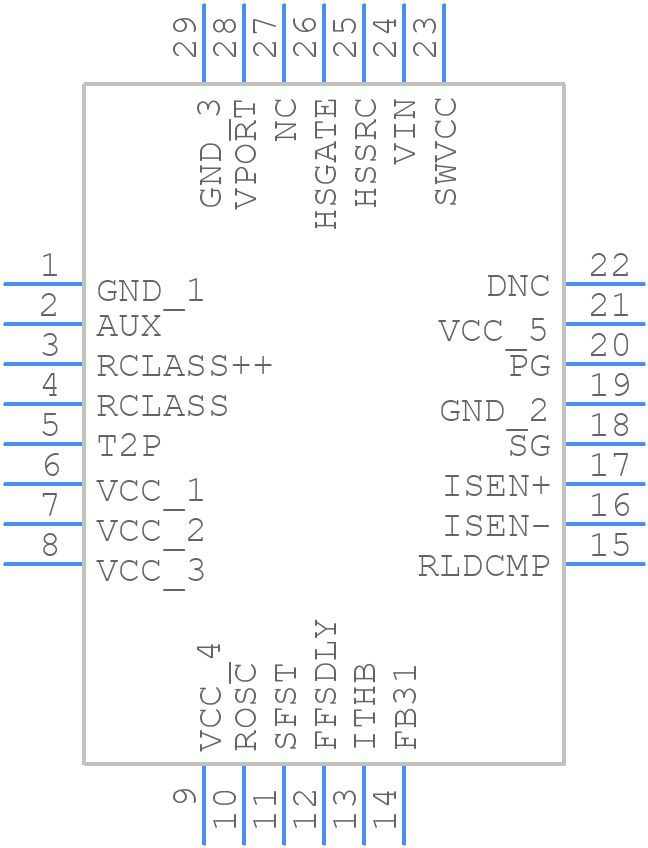

LT4276AIUFD#TRPBF - Analog Devices

LT4276AIUFD#TRPBF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the LT4276?
  A good PCB layout for the LT4276 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
• How do I ensure the LT4276 is stable and doesn't oscillate?
  To ensure stability, make sure to follow the recommended component values and PCB layout, and add a small capacitor (e.g., 10nF) between the VCC and GND pins to filter out high-frequency noise.
• What is the maximum input voltage that the LT4276 can handle?
  The LT4276 can handle input voltages up to 80V, but it's recommended to limit the input voltage to 60V or less to ensure reliable operation and minimize the risk of damage.
• Can I use the LT4276 in a high-temperature environment?
  The LT4276 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the device's specifications and consider using a heat sink or thermal management system in high-temperature applications.
• How do I troubleshoot issues with the LT4276, such as output voltage instability or overheating?
  To troubleshoot issues with the LT4276, start by checking the input voltage, output voltage, and current draw. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes or contact Analog Devices' technical support.
