A good PCB layout for the LT4276 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure proper power-up and power-down of the LT4276, it's recommended to follow a specific power-up sequence. First, power up the VCC pin, then the VIN pin, and finally the EN pin. During power-down, reverse this sequence. Additionally, make sure to add a soft-start capacitor to the EN pin to prevent inrush currents.
The LT4276 is rated for operation from -40°C to 125°C ambient temperature range. However, the device's performance and reliability may degrade at extreme temperatures, so it's recommended to operate within a narrower temperature range for optimal performance.
Yes, the LT4276 is designed to operate in high-vibration environments. However, it's recommended to follow proper PCB mounting and assembly techniques to ensure the device is securely attached to the board. Additionally, consider using a vibration-resistant capacitor for the input and output capacitors.
To troubleshoot issues with the LT4276, start by checking the input and output voltages, as well as the device's operating frequency. Use an oscilloscope to check for noise, ringing, or oscillations on the output. Also, verify that the device is properly powered up and down, and that the input and output capacitors are properly sized and placed.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LT4276CHUFD#TRPBF Overview

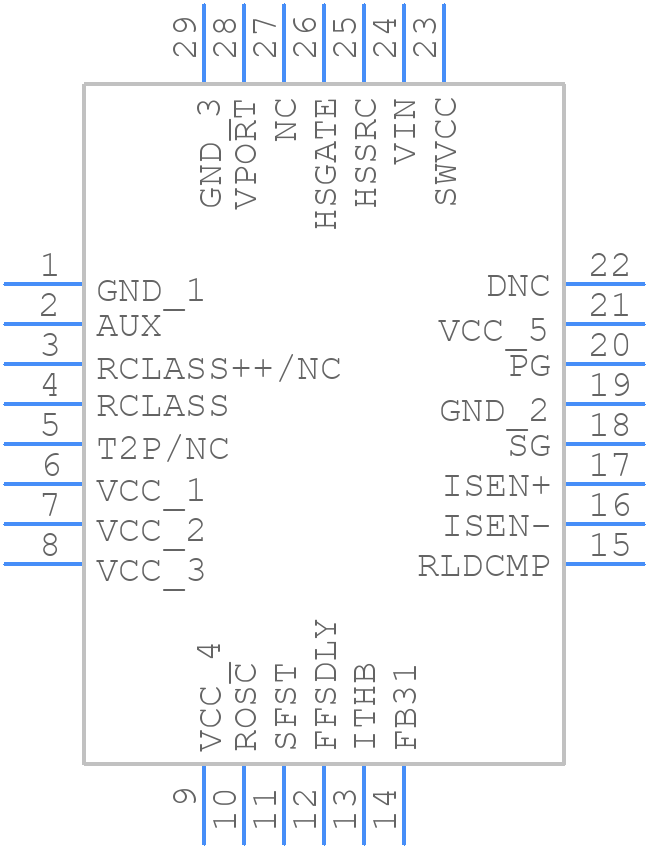

Use the download button to access the LT4276CHUFD#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT427,
or try a keyword search, such as Switching Regulator or Controllers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
