LT4294HMS#PBF - Analog Devices

Description: Hot Swap Voltage Controllers PoE++ PD Interface Controller

Download LT4294HMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

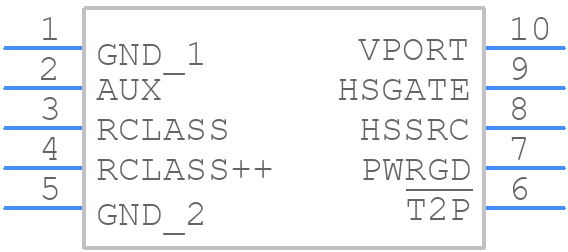

LT4294HMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4294HMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1661 Rev F)
click to zoom
3D Models
LT4294HMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 10-Lead Plastic MSOP (Reference LTC DWG # 05-08-1661 Rev F)
click to zoom

LT4294HMS#PBF Details

  • Manufacturer Part Number:

    LT4294HMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    17.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT4294HMS#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the VIN pin. Add additional decoupling capacitors (e.g., 100nF ceramic) near the VOUT pin. Ensure the power supply is stable and has low ripple.
  • The LT4294HMS can deliver up to 2A of output current, but this may vary depending on the input voltage, output voltage, and thermal conditions. Consult the datasheet for specific current limits and thermal derating.
  • The output voltage can be adjusted by changing the resistor ratio of R1 and R2. Use the formula: VOUT = (R2 / R1) * 0.8V + 0.8V. Ensure the resistors are 1% tolerance or better for accurate voltage setting.
  • The EN (enable) pin is an active-high input that allows the user to turn the regulator on or off. When EN is high, the regulator is enabled, and when EN is low, the regulator is disabled and consumes minimal quiescent current.
