LT4294IMS#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT4294IMS#PBF - POE PD CONTROLLER, MSOP-10

Download LT4294IMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

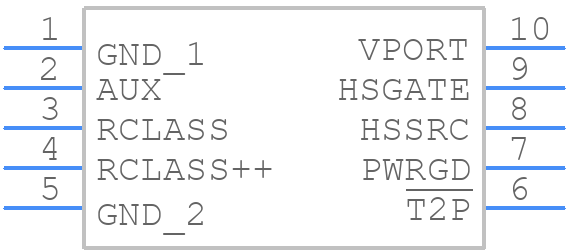

LT4294IMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4294IMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS10(MSOP)
click to zoom
3D Models
LT4294IMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS10(MSOP)
click to zoom

LT4294IMS#PBF Details

  • Manufacturer Part Number:

    LT4294IMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    17.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT4294IMS#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the VIN pin. Add additional decoupling capacitors (e.g., 100nF ceramic) near the VOUT pin. Ensure the power supply is stable and has low ripple.
  • The LT4294 can deliver up to 2A of output current, but this may vary depending on the input voltage, output voltage, and thermal conditions. Consult the datasheet for specific current limits and thermal derating.
  • The output voltage can be adjusted by changing the resistor ratio of the feedback network (R1 and R2). Use the formula in the datasheet to calculate the required resistor values for the desired output voltage.
  • The EN (enable) pin is used to turn the regulator on or off. Connect EN to VIN to enable the regulator, or connect it to GND to disable it. Use a logic signal or a switch to control the EN pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT4294IMS#PBF Overview

Use the download button to access the LT4294IMS#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT429, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
