LT4320HDD-1#PBF - Analog Devices

Description: Power Management Specialized - PMIC Ideal Diode Bridge Cntr

Download LT4320HDD-1#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

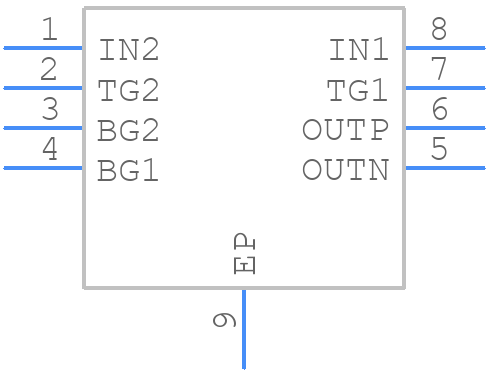

LT4320HDD-1#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT4320HDD-1#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LT4320HDD-1#PBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom

LT4320HDD-1#PBF Details

  • Manufacturer Part Number:

    LT4320HDD-1#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LT4320HDD-1#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT4320HDD-1#PBF involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure reliability in high-temperature applications, it's essential to follow proper thermal design and layout guidelines. This includes providing adequate heat sinking, using thermal vias, and keeping the device away from heat sources. Additionally, consider using a thermally enhanced package or a heat sink to reduce the junction temperature.
  • When using the LT4320HDD-1#PBF, it's crucial to consider EMI filtering to minimize electromagnetic interference. This can be achieved by using a common-mode choke, adding ferrite beads to the input and output lines, and using a shielded enclosure to reduce radiated emissions.
  • To troubleshoot issues with the LT4320HDD-1#PBF, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component selection, and soldering quality. Use an oscilloscope to measure the voltage and current waveforms, and consult the datasheet and application notes for guidance on troubleshooting common issues.
  • When using the LT4320HDD-1#PBF in a redundant or fault-tolerant system, consider the impact of device failure on system reliability. Implement redundant power paths, use hot-swap capable devices, and design the system to detect and respond to faults. Ensure that the system can continue to operate safely and efficiently even in the event of a device failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT4320HDD-1#PBF Overview

Use the download button to access the LT4320HDD-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT432, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
