LT5400ACMS8E-3#PBF - Analog Devices

Description: Resistor Networks & Arrays Matched Resistor Network, Dual 10k/100k

Download LT5400ACMS8E-3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

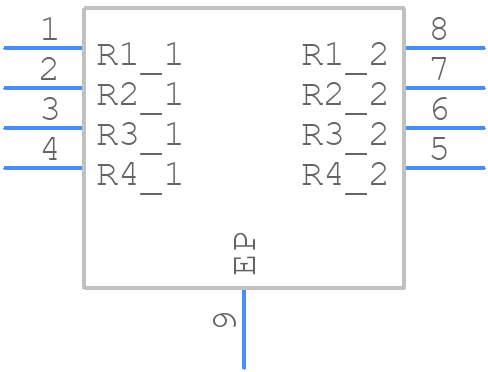

LT5400ACMS8E-3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT5400ACMS8E-3#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LT5400ACMS8E-3#PBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LT5400ACMS8E-3#PBF Details

  • Manufacturer Part Number:

    LT5400ACMS8E-3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Element Power Dissipation:

    0.8 W

  • First Element Resistance:

    100000 Ω

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Network Type:

    ISOLATED

  • Number of Elements:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Resistor Type:

    ARRAY/NETWORK RESISTOR

  • Second/Last Element Resistance:

    10000 Ω

  • Size Code:

    1212

  • Surface Mount:

    YES

  • Temperature Coefficient:

    25 ppm/°C

  • Temperature Coefficient Tracking:

    1 ppm/°C

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Shape:

    GULL WING

  • Tolerance:

    7.5%

  • Working Voltage:

    75 V

LT5400ACMS8E-3#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
  • Ensure that the output capacitor is properly sized and placed close to the output pin. Also, make sure the input capacitor is properly bypassed to ground and the input voltage is within the recommended range.
  • The maximum ambient temperature for reliable operation of the LT5400 is 125°C. However, it's recommended to derate the device for temperatures above 85°C to ensure long-term reliability.
  • Yes, the LT5400 is available in a radiation-hardened version (LT5400RH) that meets the requirements of high-reliability and aerospace applications. However, it's essential to consult with Analog Devices' sales team and follow their guidelines for using the device in such applications.
  • Use an oscilloscope to measure the input and output voltages, and check for noise and ripple. Verify that the input voltage is within the recommended range and the output capacitor is properly sized. Also, check for any layout or PCB issues that may be contributing to the problem.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT5400ACMS8E-3#PBF Overview

Use the download button to access the LT5400ACMS8E-3#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT540, or try a keyword search, such as Array/Network Resistors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
