LT5506EUF#PBF - Analog Devices

Description: LT5506EUF#PBF, Demodulator Quadrature 1.8 → 5.25 V 16-Pin QFN EP

Download LT5506EUF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

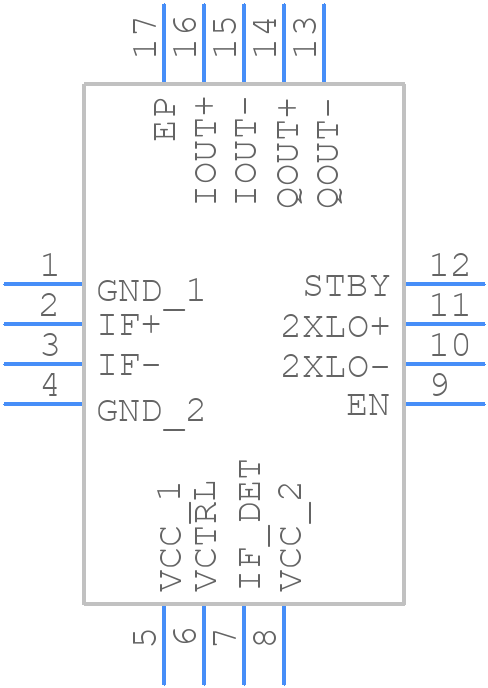

Symbol
LT5506EUF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT5506EUF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Pin QFN EP
click to zoom
3D Models
LT5506EUF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - 16-Pin QFN EP
click to zoom

LT5506EUF#PBF Details

  • Manufacturer Part Number:

    LT5506EUF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, PLASTIC, QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1692

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    100 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e3

  • Modulation Technique:

    QUADRAPHASE

  • Operating Frequency-Max:

    500 MHz

  • Operating Frequency-Min:

    40 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DEMODULATOR

  • Terminal Finish:

    Matte Tin (Sn)

LT5506EUF#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the high-frequency signals.
  • Ensure that the output voltage is within the recommended range, and the input voltage is above the minimum specified voltage. Also, use a minimum of 10uF output capacitance and a 1uF input capacitance to ensure stability.
  • The maximum ambient temperature range for the LT5506EUF is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • Yes, the LT5506EUF is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing to ensure its reliability.
  • Check the input voltage, output voltage, and output current to ensure they are within the recommended specifications. Also, check for any signs of overheating, and ensure that the device is properly soldered and connected.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT5506EUF#PBF Overview

Use the download button to access the LT5506EUF#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT550, or try a keyword search, such as RF/Microwave Modulator/Demodulators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
