LT5511EFE#PBF - Analog Devices

Description: LT5511EFE#PBF, Upconverter & Mixer 300MHz Gain=0 dB 4 → 5.25 V 16-Pin TSSOP EP

Download LT5511EFE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

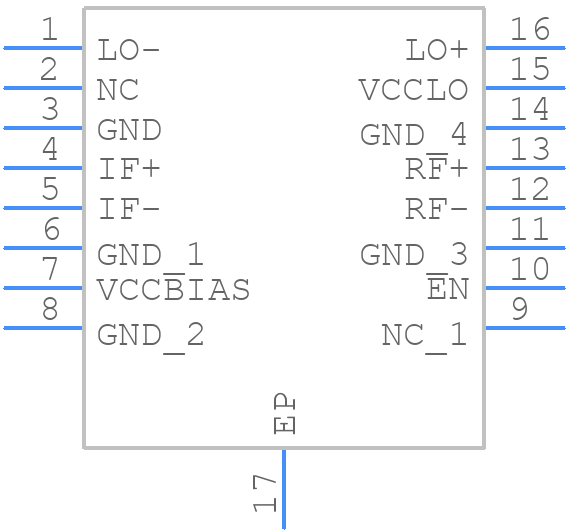

LT5511EFE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT5511EFE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - FE(TSSOP)_1
click to zoom
3D Models
LT5511EFE#PBF - Analog Devices - 3D model - Small Outline Packages - FE(TSSOP)_1
click to zoom

LT5511EFE#PBF Details

  • Manufacturer Part Number:

    LT5511EFE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1663 (BA)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Terminal Finish:

    Matte Tin (Sn)

LT5511EFE#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • Ensure that the output capacitor is properly sized and placed close to the IC. Also, use a low-ESR capacitor and a 1-2 ohm resistor in series with the output capacitor to dampen oscillations.
  • The maximum input voltage is 5.5V, but it's recommended to keep it below 5V to ensure reliable operation and minimize power dissipation.
  • The LT5511EFE is rated for operation up to 125°C, but thermal derating is required above 85°C. Ensure proper heat sinking and thermal management to prevent overheating.
  • Check the input voltage, output voltage, and current draw. Verify that the input and output capacitors are properly sized and placed. Use an oscilloscope to check for oscillations or noise on the output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LT5511EFE#PBF Overview

Use the download button to access the LT5511EFE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LT551, or try a keyword search, such as RF/Microwave Mixers
