LT5520EUF#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT5520EUF#PBF - RF Mixer Upconverter IC, 4.5 V to 5.25 V, 1.3 GHz to 2.3 GHz, QFN-16

Download LT5520EUF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

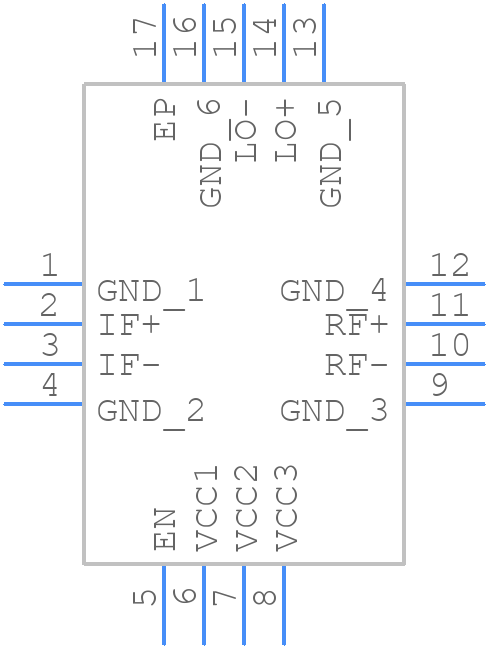

LT5520EUF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT5520EUF#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UF Package 16-Lead Plastic QFN (4mm × 4mm) (Reference LTC DWG # 05-08-1692)
click to zoom
3D Models
LT5520EUF#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UF Package 16-Lead Plastic QFN (4mm × 4mm) (Reference LTC DWG # 05-08-1692)
click to zoom

LT5520EUF#PBF Details

  • Manufacturer Part Number:

    LT5520EUF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, PLASTIC, MO-220-WGGC, QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1692

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LT5520EUF#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT5520 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended. The datasheet provides a recommended PCB layout, but it's also a good idea to consult with an experienced PCB designer or Analog Devices' application notes for more specific guidance.
  • The choice of input and output capacitors for the LT5520 depends on the specific application requirements, such as the input voltage range, output voltage, and desired ripple and noise performance. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides some guidance on capacitor selection, but it's also a good idea to consult with an experienced engineer or Analog Devices' application notes for more specific guidance.
  • The maximum ambient temperature range for the LT5520 is -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's important to consult the datasheet and Analog Devices' application notes for more information on temperature-related considerations.
  • The LT5520 has a specific power-up and power-down sequence that must be followed to ensure proper operation and prevent damage to the device. The datasheet provides guidance on the recommended power-up and power-down sequence, which typically involves ramping up the input voltage slowly and ensuring that the enable pin is properly controlled.
  • The typical start-up time for the LT5520 is around 1ms, but this can vary depending on the specific application and operating conditions. The datasheet provides more information on the device's start-up time and how it can be affected by various factors.
