LT6010CDD#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT6010CDD#PBF - Operational Amplifier, Single, 1 Amplifier, 330 kHz, 0.09 V/µs, 2.7V to 40V, DFN, 8 Pins

Download LT6010CDD#PBF Model

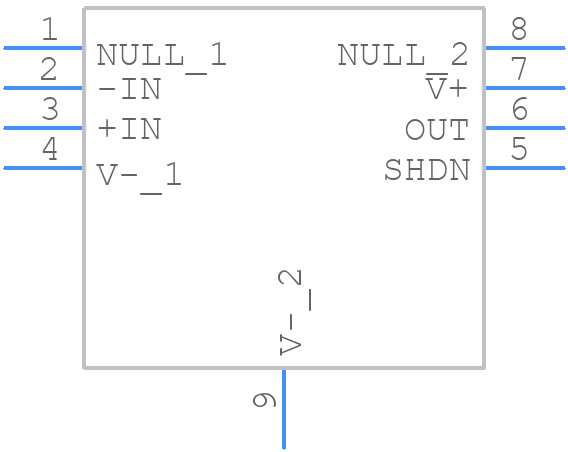

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT6010CDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LT6010CDD#PBF - Analog Devices  - 3D model - Small Outline No-lead - 8-Lead Plastic DFN (3mm × 3mm)
click to zoom

LT6010CDD#PBF Details

  • Manufacturer Part Number:

    LT6010CDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, PLASTIC, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0004 µA

  • Common-mode Reject Ratio-Min:

    115 dB

  • Common-mode Reject Ratio-Nom:

    135 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    145 µV

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Slew Rate-Min:

    0.08 V/us

  • Slew Rate-Nom:

    0.11 V/us

  • Supply Current-Max:

    0.38 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    350

  • Voltage Gain-Min:

    600000

  • Wideband:

    NO

  • Width:

    3 mm

LT6010CDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6010 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the LT6010 demo board layout for a reference design.
  • To ensure stability, make sure to follow the recommended compensation network, choose the correct output capacitor, and ensure that the input and output resistors are within the recommended range. Also, avoid capacitive loading on the output and minimize the distance between the output and the feedback resistors.
  • The maximum power dissipation of the LT6010 is dependent on the package and the ambient temperature. For the DDD package, the maximum power dissipation is 1.4W at 70°C ambient temperature. Refer to the thermal resistance and power dissipation graphs in the datasheet for more information.
  • While the LT6010 can be used as a voltage regulator, it is not recommended due to its limited output current capability and lack of short-circuit protection. The LT6010 is primarily designed as a precision op-amp for signal conditioning and amplification applications.
  • To reduce noise and EMI, use a low-noise power supply, add bypass capacitors to the power pins, and use shielding or a metal can package for the LT6010. Also, minimize the loop area of the input and output traces, and avoid running sensitive traces near the power traces.
