LT6011AIS8#PBF - Analog Devices

Description: Precision Amplifiers Dual Micropower Precision R-to-R Output OA

Download LT6011AIS8#PBF Model

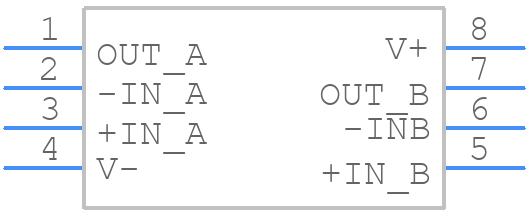

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT6011AIS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8 Package
click to zoom
3D Models
LT6011AIS8#PBF - Analog Devices  - 3D model - Small Outline Packages - S8 Package
click to zoom

LT6011AIS8#PBF Details

  • Manufacturer Part Number:

    LT6011AIS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0012 µA

  • Bias Current-Max (IIB) @25C:

    0.0006 µA

  • Common-mode Reject Ratio-Min:

    109 dB

  • Common-mode Reject Ratio-Nom:

    135 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    185 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Slew Rate-Min:

    0.08 V/us

  • Slew Rate-Nom:

    0.11 V/us

  • Supply Current-Max:

    0.8 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    350

  • Voltage Gain-Min:

    600000

  • Wideband:

    NO

  • Width:

    3.899 mm

LT6011AIS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6011AIS8 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability in the LT6011AIS8, use a minimum output capacitance of 10uF, keep the input and output traces short, and add a 10nF capacitor between the VIN and GND pins. Additionally, use a low-ESR output capacitor and a ferrite bead or a common-mode choke to filter out noise.
  • The maximum ambient temperature range for the LT6011AIS8 is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • Yes, the LT6011AIS8 is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing to ensure its performance and reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the device meets the required reliability standards.
  • To troubleshoot issues with the LT6011AIS8, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Then, verify that the input and output capacitors are properly sized and placed. Use an oscilloscope to check for oscillations or ringing on the output, and ensure that the input voltage is within the recommended range. If the issue persists, consult the datasheet and application notes for further guidance.
