LT6011IDD#PBF - Analog Devices

Description: Precision Amplifiers Dual Micropower Precision R-to-R Output OA

Download LT6011IDD#PBF Model

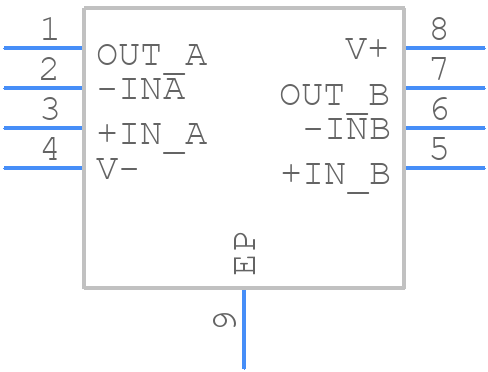

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT6011IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LT6011IDD#PBF - Analog Devices  - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom

LT6011IDD#PBF Details

  • Manufacturer Part Number:

    LT6011IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0015 µA

  • Bias Current-Max (IIB) @25C:

    0.0018 µA

  • Common-mode Reject Ratio-Min:

    109 dB

  • Common-mode Reject Ratio-Nom:

    135 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    275 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    0.08 V/us

  • Slew Rate-Nom:

    0.11 V/us

  • Supply Current-Max:

    0.76 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    350

  • Voltage Gain-Min:

    600000

  • Wideband:

    NO

  • Width:

    3 mm

LT6011IDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6011 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure stability, the LT6011 requires a minimum output capacitance of 10uF, and the output capacitor should be placed close to the device. Additionally, the input and output resistors should be chosen to ensure that the device is operated within its stable region. The datasheet provides a stability analysis and guidelines for selecting the output capacitor and resistors.
  • The LT6011 has an absolute maximum input voltage rating of 36V, but the recommended maximum input voltage is 30V to ensure reliable operation. Exceeding the maximum input voltage can damage the device.
  • The LT6011 is rated for operation from -40°C to 125°C, but its performance may degrade at high temperatures. The device's output voltage and current may decrease, and its noise performance may degrade at high temperatures. It's essential to consider the device's thermal characteristics and ensure proper heat sinking when operating in high-temperature environments.
  • To protect the LT6011 from input overvoltage and reverse voltage, it's recommended to add external protection circuitry, such as a voltage clamp or a transient voltage suppressor (TVS) diode, between the input and the device. Additionally, a reverse voltage protection diode can be added between the input and ground to prevent reverse voltage damage.
