LT6011IS8#PBF - Analog Devices

Description: Linear Technology LT6011IS8#PBF, Dual Precision Op Amp, 0.35MHz Rail-Rail, 2.7 → 36 V, 8-Pin SOIC

Download LT6011IS8#PBF Model

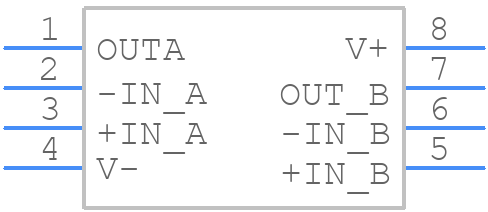

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT6011IS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S8-ren3
click to zoom
3D Models
LT6011IS8#PBF - Analog Devices  - 3D model - Small Outline Packages - S8-ren3
click to zoom

LT6011IS8#PBF Details

  • Manufacturer Part Number:

    LT6011IS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1610 (S8)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0015 µA

  • Bias Current-Max (IIB) @25C:

    0.0018 µA

  • Common-mode Reject Ratio-Min:

    109 dB

  • Common-mode Reject Ratio-Nom:

    135 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    200 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Slew Rate-Min:

    0.08 V/us

  • Slew Rate-Nom:

    0.11 V/us

  • Supply Current-Max:

    0.8 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    350

  • Voltage Gain-Min:

    600000

  • Wideband:

    NO

  • Width:

    3.899 mm

LT6011IS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6011 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability in high-gain configurations, it's essential to follow the recommended compensation network and component values, and to ensure that the output capacitor is properly sized. Additionally, the input and output impedances should be matched to prevent oscillations.
  • The maximum power dissipation of the LT6011 is dependent on the package type and the ambient temperature. The power dissipation can be calculated using the formula: Pd = (VIN - VOUT) x IOUT. The maximum power dissipation can be found in the datasheet, and it's essential to ensure that the device is operated within the recommended temperature range.
  • Yes, the LT6011 can be used as a voltage regulator, but it's essential to ensure that the output voltage is within the recommended range (1.2V to 36V). The device is not designed for high-current applications, and the output current should be limited to 100mA or less. Additionally, the input voltage should be at least 2V higher than the output voltage.
  • To protect the LT6011 from input voltage transients and overvoltage conditions, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode at the input. Additionally, a fuse or a current-limiting resistor can be used to prevent damage from overcurrent conditions.
