LT6012ACS#PBF - Analog Devices

Description: Linear Technology LT6012ACS#PBF Low Noise Op Amp, 350kHz Rail-Rail, 14-Pin SOIC

Download LT6012ACS#PBF Model

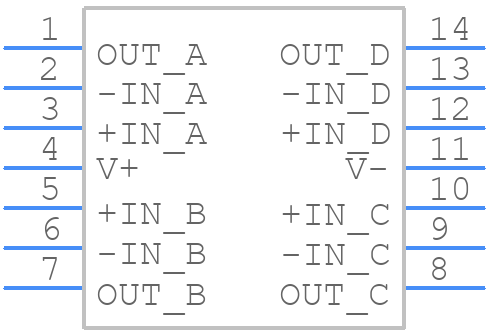

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT6012ACS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - S_Package(14-Lead)
click to zoom
3D Models
LT6012ACS#PBF - Analog Devices  - 3D model - Small Outline Packages - S_Package(14-Lead)
click to zoom

LT6012ACS#PBF Details

  • Manufacturer Part Number:

    LT6012ACS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.150 INCH, LEAD FREE, PLASTIC, SOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1610 (S14)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00045 µA

  • Bias Current-Max (IIB) @25C:

    0.0006 µA

  • Common-mode Reject Ratio-Min:

    109 dB

  • Common-mode Reject Ratio-Nom:

    135 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    160 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.649 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.752 mm

  • Slew Rate-Min:

    0.08 V/us

  • Slew Rate-Nom:

    0.11 V/us

  • Supply Current-Max:

    1.6 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    350

  • Voltage Gain-Min:

    600000

  • Wideband:

    NO

  • Width:

    3.899 mm

LT6012ACS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6012ACS involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended compensation network, use a low-ESR output capacitor, and minimize the distance between the output capacitor and the device. Additionally, a small ceramic capacitor (e.g., 10nF) can be added between the VCC and GND pins to improve high-frequency stability.
  • The maximum output current of the LT6012ACS is 2A. Exceeding this limit can cause the device to overheat, reduce its lifespan, or even lead to failure. It's essential to ensure that the output current is within the recommended range to maintain optimal performance and reliability.
  • During startup, the LT6012ACS has a soft-start feature that limits the inrush current. During shutdown, the device's output voltage decays rapidly to prevent back-EMF damage. It's essential to ensure that the input voltage rises and falls slowly to prevent unwanted oscillations or damage to the device.
  • The LT6012ACS has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to provide adequate heat sinking, use a thermally conductive PCB material, and keep the device away from heat sources. A thermal pad or heat sink can be used to improve heat dissipation.
