LT6013CDD#PBF - Analog Devices

Description: Single/Dual 145µA, 9.5nV/√Hz, AV ≥5, Rail-to-Rail Output Precision Op Amps

Download LT6013CDD#PBF Model
Schematic

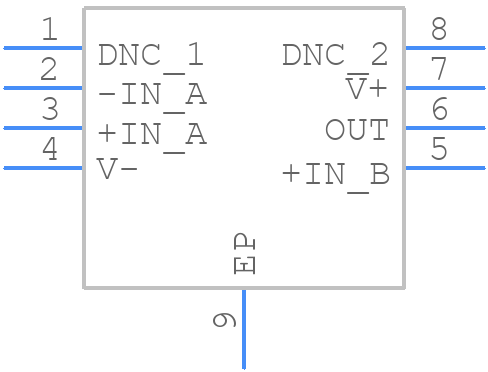

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT6013CDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD(DFN)
click to zoom
3D Models
LT6013CDD#PBF - Analog Devices  - 3D model - Small Outline No-lead - DD(DFN)
click to zoom

LT6013CDD#PBF Details

  • Manufacturer Part Number:

    LT6013CDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, PLASTIC, M0-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0006 µA

  • Bias Current-Max (IIB) @25C:

    0.0004 µA

  • Common-mode Reject Ratio-Min:

    107 dB

  • Common-mode Reject Ratio-Nom:

    135 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    160 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -20 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    YES

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    0.12 V/us

  • Slew Rate-Nom:

    0.2 V/us

  • Supply Current-Max:

    0.29 mA

  • Supply Voltage Limit-Max:

    20 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1600

  • Voltage Gain-Min:

    60000

  • Wideband:

    YES

  • Width:

    3 mm

LT6013CDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6013 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure stability, it's essential to follow the recommended compensation network and component values provided in the datasheet. Additionally, the input and output capacitors should be chosen carefully to ensure they meet the recommended ESR and capacitance values. The datasheet also provides guidance on how to calculate the compensation components for specific applications.
  • The maximum power dissipation of the LT6013 is dependent on the package type and the ambient temperature. For the DDD package, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated at higher temperatures. The datasheet provides a power dissipation vs. temperature graph that should be consulted for specific applications.
  • The LT6013 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may be affected at high temperatures. The datasheet provides guidance on the device's performance at high temperatures, and it's essential to consult this information when designing for high-temperature applications.
  • The LT6013 has an absolute maximum input voltage rating of 18V. To protect the device from input overvoltage, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode at the input. The datasheet provides guidance on how to choose the correct TVS diode for specific applications.
