LT6020IMS8#PBF - Analog Devices

Description: Precision Amplifiers Dual Micropower Op Amp with Slew Boost

Download LT6020IMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

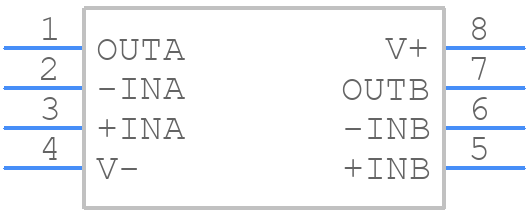

LT6020IMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6020IMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Plastic MSOP-ren1
click to zoom
3D Models
LT6020IMS8#PBF - Analog Devices - 3D model - Small Outline Packages - 8-Lead Plastic MSOP-ren1
click to zoom

LT6020IMS8#PBF Details

  • Manufacturer Part Number:

    LT6020IMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.01 µA

  • Bias Current-Max (IIB) @25C:

    0.003 µA

  • Common-mode Reject Ratio-Min:

    120 dB

  • Common-mode Reject Ratio-Nom:

    132 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    140 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    0.2 V/us

  • Supply Current-Max:

    0.28 mA

  • Supply Voltage Limit-Max:

    36 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    400

  • Voltage Gain-Min:

    251188.6

  • Wideband:

    NO

  • Width:

    3 mm

LT6020IMS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6020 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability in high-gain configurations, it's essential to follow the recommended compensation network and component values, and to ensure that the output impedance of the amplifier is low enough to drive the load. Additionally, the input and output capacitors should be selected to ensure that the amplifier remains stable.
  • The maximum power dissipation of the LT6020 is dependent on the package type and the ambient temperature. The maximum power dissipation can be calculated using the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
  • Yes, the LT6020 can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the input signal, and that the output impedance is low enough to drive the load. Additionally, the gain bandwidth product should be considered to ensure that the amplifier can handle the required frequency range.
  • To protect the LT6020 from overvoltage and ESD damage, it's recommended to use voltage clamps or transient voltage suppressors on the input and output pins, and to follow proper ESD handling and storage procedures. Additionally, the device should be operated within the recommended voltage and current ranges.
