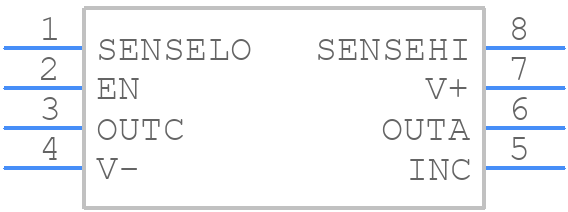

LT6108AHMS8-2#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6108AHMS8-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 8-Lead Plastic MSOP
click to zoom
3D Models
LT6108AHMS8-2#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 8-Lead Plastic MSOP
click to zoom

LT6108AHMS8-2#PBF Details

  • Manufacturer Part Number:

    LT6108AHMS8-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    CURRENT-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.35 µA

  • Bias Current-Max (IIB) @25C:

    0.3 µA

  • Common-mode Reject Ratio-Nom:

    125 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    250 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.95 mA

  • Supply Voltage Limit-Max:

    60 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Wideband:

    NO

  • Width:

    3 mm

LT6108AHMS8-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6108AHMS8-2#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
  • To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to ensure that the input and output capacitors meet the recommended specifications. Additionally, the device should be operated within its recommended operating conditions, and the PCB layout should be designed to minimize noise and EMI.
  • The maximum power dissipation of the LT6108AHMS8-2#PBF is dependent on the operating conditions, such as the input voltage, output current, and ambient temperature. However, as a general guideline, the device should not exceed a junction temperature of 150°C. The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout + Vin x Iq, where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
  • The LT6108AHMS8-2#PBF is rated for operation up to 125°C, but it's essential to ensure that the device is properly derated for high-temperature operation. The device's power dissipation should be reduced, and the input voltage and output current should be limited to prevent overheating. Additionally, the device's reliability and performance may be affected at high temperatures, so it's recommended to consult with Analog Devices Inc for specific guidance.
  • To troubleshoot issues with the LT6108AHMS8-2#PBF, start by verifying that the device is properly powered and that the input and output voltages are within the recommended specifications. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to verify that the output voltage is stable and within the expected range. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices Inc for technical support.
