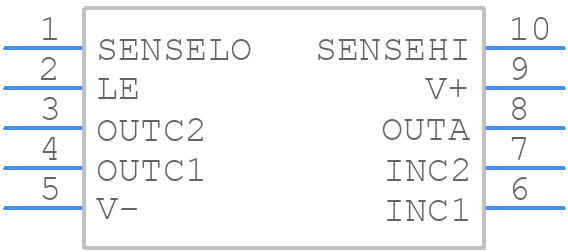

LT6119IMS-1#PBF - Analog Devices

LT6119IMS-1#PBF Details

• Manufacturer Part Number:

  LT6119IMS-1#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  MSOP-10

• Pin Count:

  10

• Manufacturer Package Code:

  05-08-1661

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  8.5

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.35 µA

• Bias Current-Max (IIB) @25C:

  0.3 µA

• Common-mode Reject Ratio-Min:

  110 dB

• Common-mode Reject Ratio-Nom:

  125 dB

• Frequency Compensation:

  YES

• Input Offset Voltage-Max:

  300 µV

• JESD-30 Code:

  S-PDSO-G10

• JESD-609 Code:

  e3

• Length:

  3 mm

• Low-Bias:

  NO

• Low-Offset:

  YES

• Micropower:

  NO

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP10,.19,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  1 mA

• Supply Voltage Limit-Max:

  60 V

• Supply Voltage-Nom (Vsup):

  12 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Unity Gain BW-Nom:

  140

• Wideband:

  NO

• Width:

  3 mm
