LT6237CDD#PBF - Analog Devices

Description: Precision Amplifiers Rail-to-Rail Output 215MHz, 1.1nV/Hz Op Amp/SAR ADC Driver

Download LT6237CDD#PBF Model

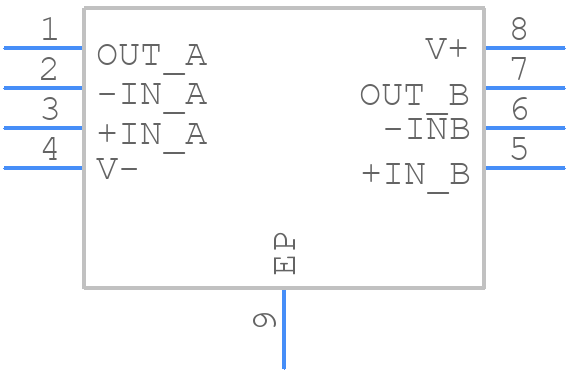

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LT6237CDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LT6237CDD#PBF - Analog Devices  - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom

LT6237CDD#PBF Details

  • Manufacturer Part Number:

    LT6237CDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3MM, LEAD FREE, PLASTIC, MO-229WEED-1, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    11 µA

  • Bias Current-Max (IIB) @25C:

    10 µA

  • Common-mode Reject Ratio-Min:

    90 dB

  • Common-mode Reject Ratio-Nom:

    115 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    550 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    42 V/us

  • Slew Rate-Nom:

    60 V/us

  • Supply Current-Max:

    7 mA

  • Supply Voltage Limit-Max:

    12.6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    200000

  • Voltage Gain-Min:

    5400

  • Wideband:

    YES

  • Width:

    3 mm

LT6237CDD#PBF Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LT6237CDD is dependent on the thermal resistance of the package and the ambient temperature. According to the datasheet, the maximum power dissipation is approximately 1.4W at 25°C ambient temperature.
  • To optimize the layout for the LT6237CDD, it is recommended to follow good PCB design practices, such as keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it is recommended to use a low-ESR capacitor for the output filter and to place the capacitor close to the output pin.
  • The recommended input capacitor value for the LT6237CDD is dependent on the input voltage and the desired ripple rejection. According to the datasheet, a 1uF to 10uF ceramic capacitor is recommended for most applications.
  • The LT6237CDD is rated for operation up to 125°C junction temperature. However, the maximum ambient temperature rating is 85°C. If you need to operate the device in a high-temperature environment, you may need to consider derating the device or using a heat sink to ensure reliable operation.
  • To ensure the stability of the LT6237CDD, it is recommended to follow the recommended component values and layout guidelines in the datasheet. Additionally, it is recommended to use a low-ESR output capacitor and to ensure that the output capacitor is properly decoupled from the input voltage.
