LT6375AHDF#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LT6375AHDF#PBF - Differenzverstärker, Rail-to-Rail, 1 Verstärker, 575 kHz, -40 °C, 125 °C

Download LT6375AHDF#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

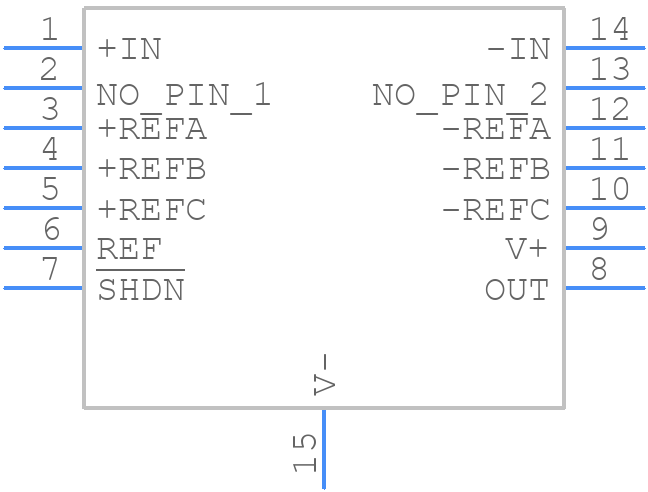

LT6375AHDF#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LT6375AHDF#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DF Package 14(12)-Lead Plastic DFN (4mm × 4mm)
click to zoom
3D Models
LT6375AHDF#PBF - Analog Devices - 3D model - Small Outline No-lead - DF Package 14(12)-Lead Plastic DFN (4mm × 4mm)
click to zoom

LT6375AHDF#PBF Details

  • Manufacturer Part Number:

    LT6375AHDF#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-14/12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1963

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Bandwidth (3dB)-Nom:

    0.575 MHz

  • Common-mode Reject Ratio-Min:

    95 dB

  • Common-mode Reject Ratio-Nom:

    105 dB

  • Frequency Compensation:

    NO

  • JESD-30 Code:

    S-PDSO-N12

  • Length:

    4 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -30 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12/14,.16,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    1.6 V/us

  • Slew Rate-Nom:

    2.4 V/us

  • Supply Current-Max:

    0.6 mA

  • Supply Voltage Limit-Max:

    30 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Wideband:

    NO

  • Width:

    4 mm

LT6375AHDF#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LT6375AHDF involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout. Additionally, the output capacitor should be chosen to ensure a minimum ESR (Equivalent Series Resistance) of 0.1 ohms. The input capacitor should also be chosen to ensure a minimum ESR of 0.1 ohms. Furthermore, the device should be operated within its recommended operating conditions, and the input and output voltages should be within the specified ranges.
  • The maximum power dissipation of the LT6375AHDF is dependent on the operating conditions and the package type. For the HDF package, the maximum power dissipation is 1.4W. However, this value can be derated based on the ambient temperature and the thermal resistance of the package. The datasheet provides a thermal derating curve that should be consulted to determine the maximum power dissipation for a specific application.
  • The LT6375AHDF is rated for operation from -40°C to 125°C. However, the device's performance and reliability may be affected at high temperatures. The datasheet provides a graph of the device's output voltage vs. temperature, which shows a slight decrease in output voltage at high temperatures. Additionally, the device's power dissipation should be derated at high temperatures to prevent overheating.
  • To troubleshoot issues with the LT6375AHDF, start by verifying that the device is properly powered and that the input and output voltages are within the specified ranges. Check the PCB layout and ensure that it follows the recommended layout and land pattern. Use an oscilloscope to check for oscillations or noise on the input and output lines. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
